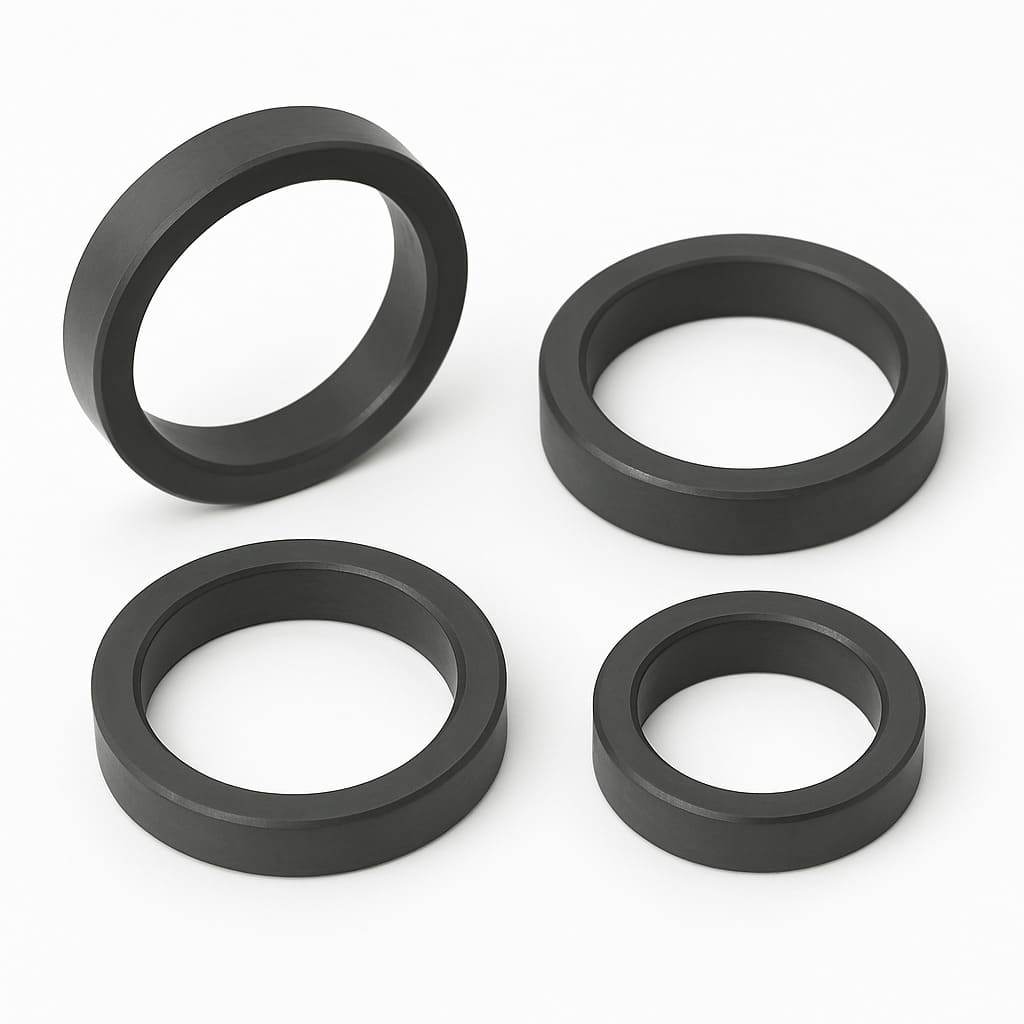

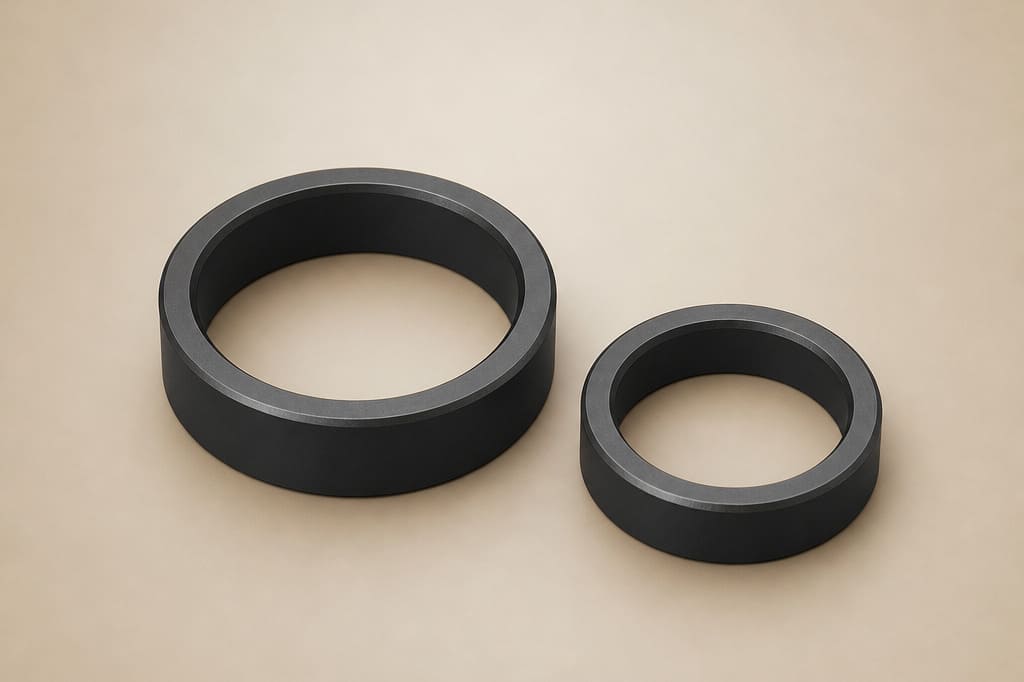

Silicon Nitride Ring

Silicon nitride rings: precision components made from high-purity Si₃N₄. Offer high strength, toughness, heat resistance (>1200°C), thermal shock resistance, and self-lubrication. Widely used in high-temperature bearings, semiconductor fixtures, turbine seals, and thermal equipment, significantly enhancing performance and service life.NexusX Advanced Materials, as a premier manufacturer and supplier of high-quality Silicon Nitride products, focuses on producing high-precision aluminum nitride silicon structural compenents through advanced technologies for diverse application fields.

Or email us at [email protected]

Silicon Nitride Ring Data Sheet

Purity:	≥99%
Color:	Black
Chemical Formula:	Si3N4
Material Grades:	HMSN1000, HMSN2000, HMSN3000, HMSN4000
Density:	3.20 g/cm3
Diameter:	customized

Silicon Nitride Ring Description

Silicon nitride ceramic ring: a high-performance ring-shaped component made from high-purity Si₃N₄ via isostatic pressing, injection molding, or gel casting, followed by pressureless or hot pressing sintering. Its microstructure of interlocked β-Si₃N₄ grains provides high flexural strength (800–1200 MPa) and fracture toughness (>6 MPa·m¹/²). It withstands up to 1400°C, has a low thermal expansion coefficient (~3.2×10⁻⁶/℃), resists thermal shock >800°C, and offers excellent wear/corrosion resistance and electrical insulation. Commonly used in high-speed precision bearings, semiconductor wafer carriers, turbocharger sealing rings, high-temperature furnace supports, and oil-free lubrication seals. Lightweight, durable, and long-lasting, it improves equipment efficiency, reduces energy use, and lowers maintenance costs.

Silicon Nitride Ring Features

Exceptional Mechanical Properties
Combines high strength (flexural strength >800 MPa) with high toughness (fracture toughness >6 MPa·m¹/²), offering superior impact resistance compared to traditional ceramics.
Outstanding High-Temperature Resistance
Long-term service temperature exceeds 1200°C with minimal strength degradation; low thermal expansion coefficient (≈3.2×10⁻⁶/℃).
Excellent Thermal Shock Resistance
Withstands thermal cycling >800°C; intergranular microstructure effectively inhibits thermal stress cracking.
High Hardness & Wear Resistance
Vickers hardness >1400 Hv with low friction coefficient (0.1-0.3), suitable for lubrication-free high-wear environments.
Chemical Inertness & Stability
Resists acid/base corrosion and oxidation; maintains structural integrity in molten metals (e.g., aluminum, zinc).
Self-Lubricating Behavior
Forms a silica-based lubricating layer on surfaces, reducing friction and extending component lifespan.
Superior Electrical Insulation
High volume resistivity (>10¹⁴ Ω·cm), ideal for high-temperature insulating applications.
Lightweight Design
Density仅3.2-3.3 g/cm³, achieving over 60% weight reduction compared to alloy materials.
Precision Dimensional Stability
Controllable sintering shrinkage enables micron-level machining accuracy, meeting tight tolerance assembly requirements.

Silicon Nitride Ring Applications

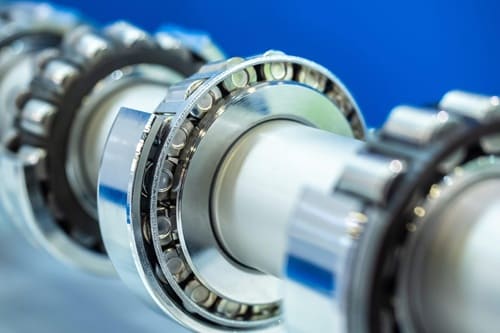

High-Speed Precision Bearings
Used in aerospace, precision machine tools, and wind turbine spindle bearings, known for high rotational speed, wear resistance, and long service life.
Semiconductor Manufacturing
Serves as wafer carriers in thermal processing, offering high-temperature stability and contamination-free performance to ensure chip yield.
Turbocharger Components
Functions as sealing rings and bearing rings for turbine rotors, withstanding high-temperature exhaust impact to enhance engine efficiency.

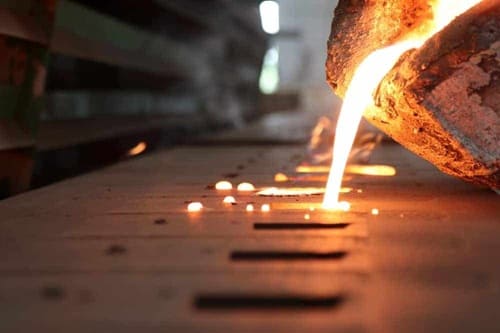

Metallurgical Thermal Equipment
Applied in continuous casting rollers, furnace rollers, and molten aluminum thermocouple sheaths, resistant to metal corrosion and thermal shock.

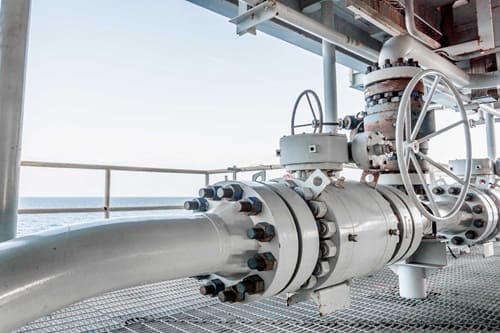

Mechanical Seals
Used in chemical pumps and compressors as face seals, suitable for lubrication-free and highly corrosive conditions.
New Energy Vehicle E-Drive Systems
Serves as insulated bearing rings in motors, providing both electrical insulation and heat dissipation for improved system reliability.
Medical Device Precision Parts
Used in rotating anode bearings for advanced imaging equipment and wear-resistant rings for surgical instruments, meeting sterile environment requirements.
Scientific Instrument Critical Components
Functions as insulating positioning rings in vacuum chambers, lasers, and analytical instruments, ensuring measurement accuracy.

Silicon Nitride Ceramic Packaging

Silicon nitride ceramic products are typically packaged in vacuum-sealed bags to prevent moisture or contamination and wrapped with foam to cushion vibrations and impacts during transport, ensuring the quality of products in their original condition.

Download

FAQ

What is a Silicon Nitride Ring?

A Silicon Nitride Ring is a precision engineering ceramic component with a ring-shaped geometry, primarily composed of silicon nitride (Si₃N₄) and manufactured through high-temperature sintering.

What are the main advantages of Silicon Nitride Rings?

Key advantages include: high strength and toughness, excellent high-temperature resistance (＞1200℃), outstanding thermal shock resistance, low density, high hardness, and good wear and corrosion resistance.

Why are Silicon Nitride Rings suitable for high-speed bearings?

Due to their high hardness, low friction coefficient, excellent fatigue resistance, and lightweight properties, they significantly reduce bearing wear, increase rotational speed, and extend service life.

How are Silicon Nitride Rings processed and customized?

They are precision machined primarily using diamond tools. Customization of dimensions, shapes, tolerances, and surface finishes is available based on customer drawings.

What should be considered when selecting a Silicon Nitride Ring supplier?

Key considerations include the supplier’s capability in material purity control, manufacturing process expertise, quality management systems, machining precision assurance, and application technical support.
