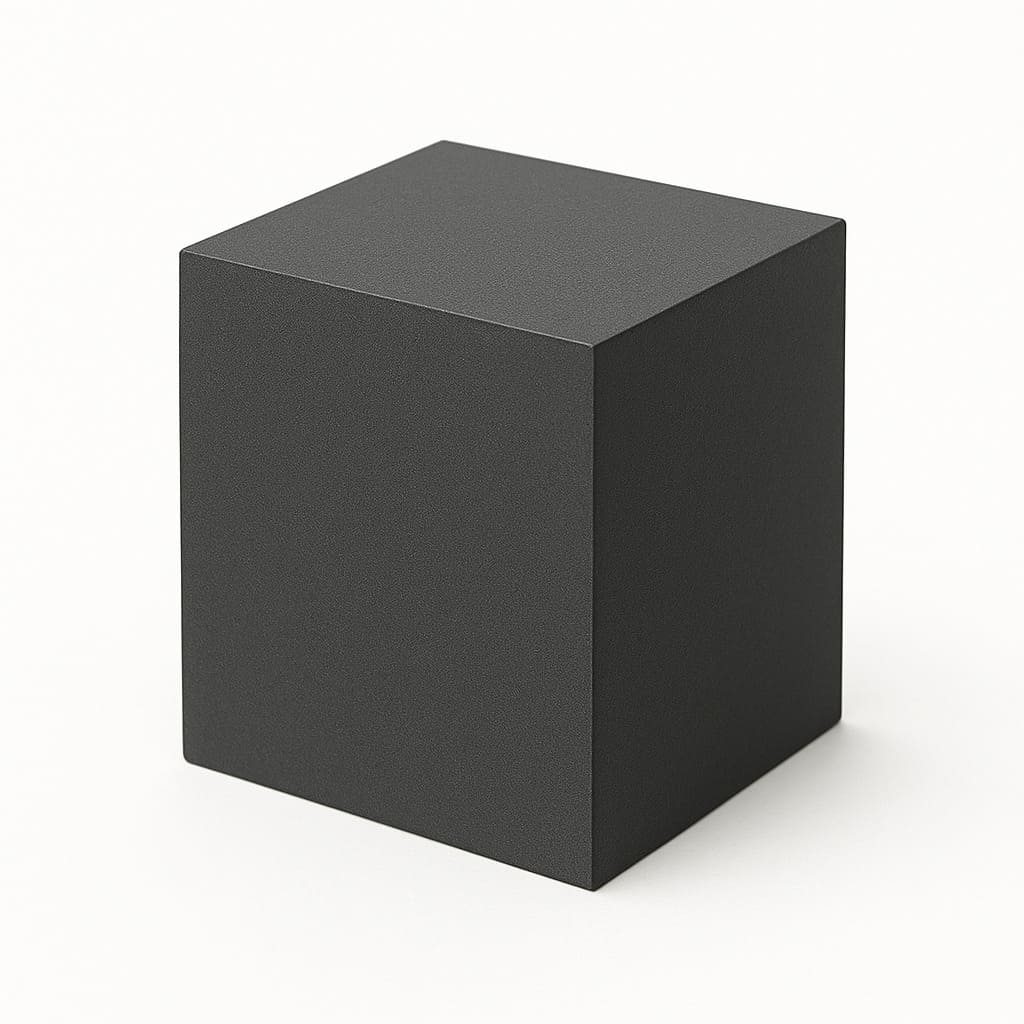

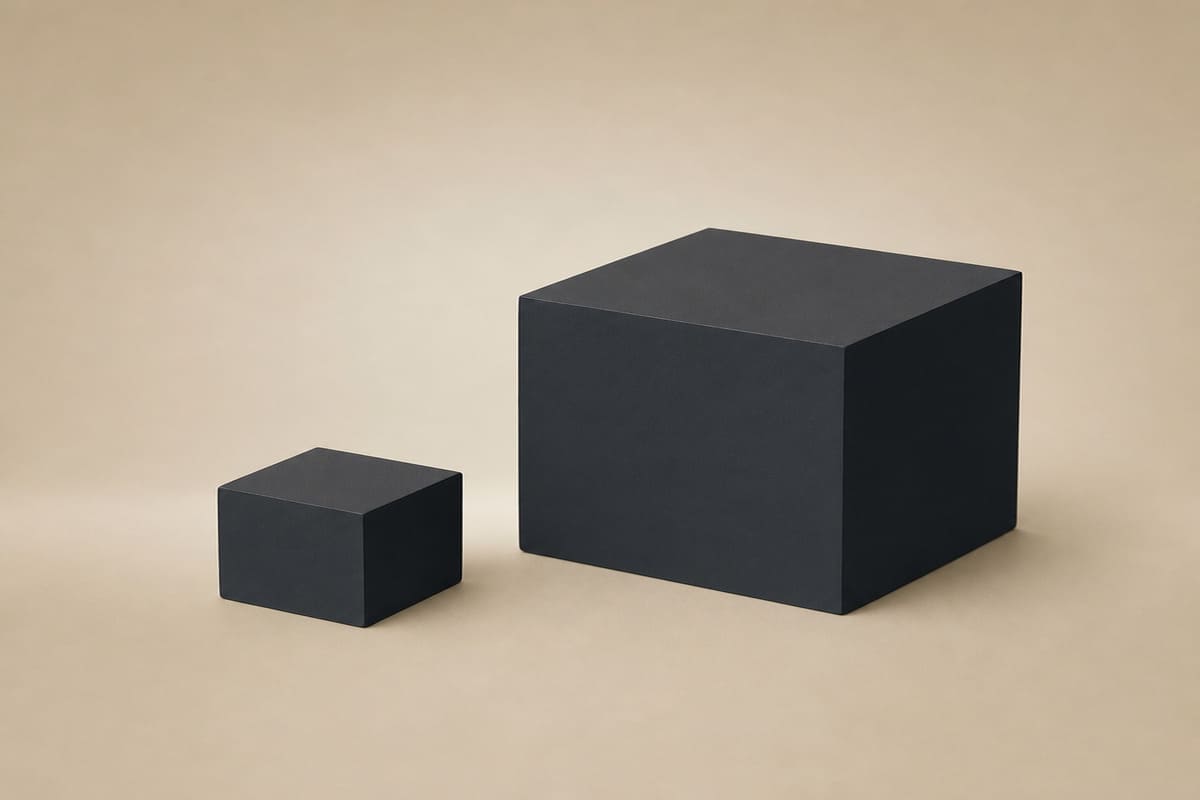

Silicon Nitride Block
- Custom and standard options available.
- Fast lead times guaranteed.
- High performance at a competitive price.
A high-performance ceramic of silicon and nitrogen with strong covalent bonds, it provides exceptional hardness, wear resistance, high-temperature strength, thermal shock resistance, chemical inertness, low density, and electrical insulation. Widely used in bearings, cutting tools, semiconductor components, turbine blades, wear parts, and biomedical implants, it is essential for precision manufacturing under extreme conditions.NexusX Advanced Materials, as a premier manufacturer and supplier of high-quality Silicon Nitride Block products, focuses on producing high-precision aluminum nitride silicon structural compenents through advanced technologies for diverse application fields.
Or email us at [email protected]
Silicon Nitride Block Data Sheet
| Purity: | ≥99% |
| Color: | Black |
| Chemical Formula: | Si3N4 |
| Material Grades: | HMSN1000, HMSN2000, HMSN3000, HMSN4000 |
| Density: | 3.20 g/cm3 |
| Dimension: | customized |
Silicon Nitride Block Description
Our silicon nitride blocks are precision-engineered using high-purity raw materials and advanced sintering technology, featuring exceptional hardness and wear resistance (Vickers hardness 1400-1600) while maintaining outstanding mechanical strength and dimensional stability under high-temperature environments. With thermal shock resistance exceeding 800°C temperature differentials, they demonstrate remarkable corrosion resistance against most acids, alkalis, and molten metals. The blocks exhibit uniform density (3.2-3.3 g/cm³) and can achieve mirror-grade surface finish (Ra<0.2μm) through precision machining, coupled with excellent electrical insulation (dielectric strength >15 kV/mm) and low thermal expansion coefficient. Ideal for high-end industrial applications including semiconductor manufacturing equipment components, precision bearing rolling elements, high-speed cutting tools, and turbine engine thermal components, these blocks serve as critical core materials for enhancing equipment performance and operational reliability.
Silicon Nitride Block Features
- Exceptional Mechanical Properties: High hardness (Vickers hardness 1400-1600), excellent wear resistance, and superior fracture toughness compared to most engineering ceramics.
- Outstanding Thermal Performance: High temperature resistance (continuous use up to 1200°C), excellent thermal shock resistance (ΔT > 800°C), and low coefficient of thermal expansion.
- Stable Chemical Properties: Superior corrosion resistance against most acids, alkalis, and molten metals (such as aluminum and copper).
- Excellent Electrical Characteristics: Maintains good electrical insulation at high temperatures with high dielectric strength (>15 kV/mm).
- Precision Machinability: Capable of achieving ultra-high dimensional accuracy (tolerance ±0.01mm) and ultra-smooth surfaces (Ra < 0.2μm) through grinding processes.
- Lightweight Design: Density of only 3.2-3.3 g/cm³, approximately 60% lighter than steel, enabling weight reduction and efficiency improvement.
Silicon Nitride Block Applications
- Semiconductor Manufacturing: Used for wafer handling chucks, heater pedestals, and plasma-resistant components in etching/deposition equipment.
- Precision Bearings & Automotive: Critical in high-speed ceramic bearings and turbocharger rotors for enhanced performance and durability.
- Industrial Cutting & Forming: Applied in high-speed cutting tools, metal forming rollers, and wear-resistant molds.
- Energy & Aerospace: Utilized in gas turbine components, thermal protection parts, and high-temperature sensor housings.
- Biomedical Implants: Employed in orthopedic joint replacements and spinal implants due to superior biocompatibility.
Silicon Nitride Ceramic Packaging
Silicon nitride ceramic products are typically packaged in vacuum-sealed bags to prevent moisture or contamination and wrapped with foam to cushion vibrations and impacts during transport, ensuring the quality of products in their original condition.
Download
- SAFETY DATA SHEET (SDS) -Silicon Nitride Block
FAQ
What is a silicon nitride block?
A silicon nitride block is a high-performance engineering ceramic material made by sintering silicon and nitrogen, known for its exceptional hardness, thermal resistance, and chemical stability.
What are the key properties of silicon nitride blocks?
Key properties include extreme hardness (second only to diamond), excellent thermal shock resistance, high-temperature capability (over 1200°C), low density, and superior wear and corrosion resistance.
Why is silicon nitride suitable for the semiconductor industry?
Due to its high purity, plasma erosion resistance, low outgassing, and dimensional stability under high temperatures and corrosive environments, it is ideal for wafer chucks and chamber liners.
Is silicon nitride electrically conductive?
No, it is an excellent electrical insulator and maintains stable insulation properties even at high temperatures.
How should silicon nitride blocks be cleaned and maintained?
Clean with non-corrosive solvents (e.g., alcohol) using ultrasonic methods. Avoid mechanical impact and regularly inspect for surface wear.
