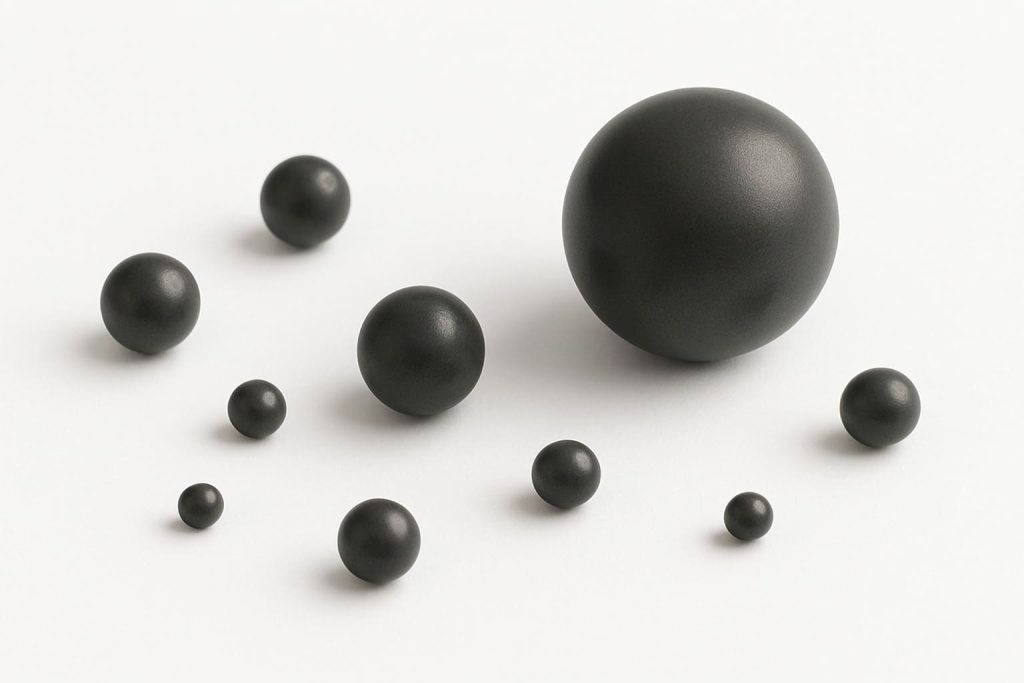

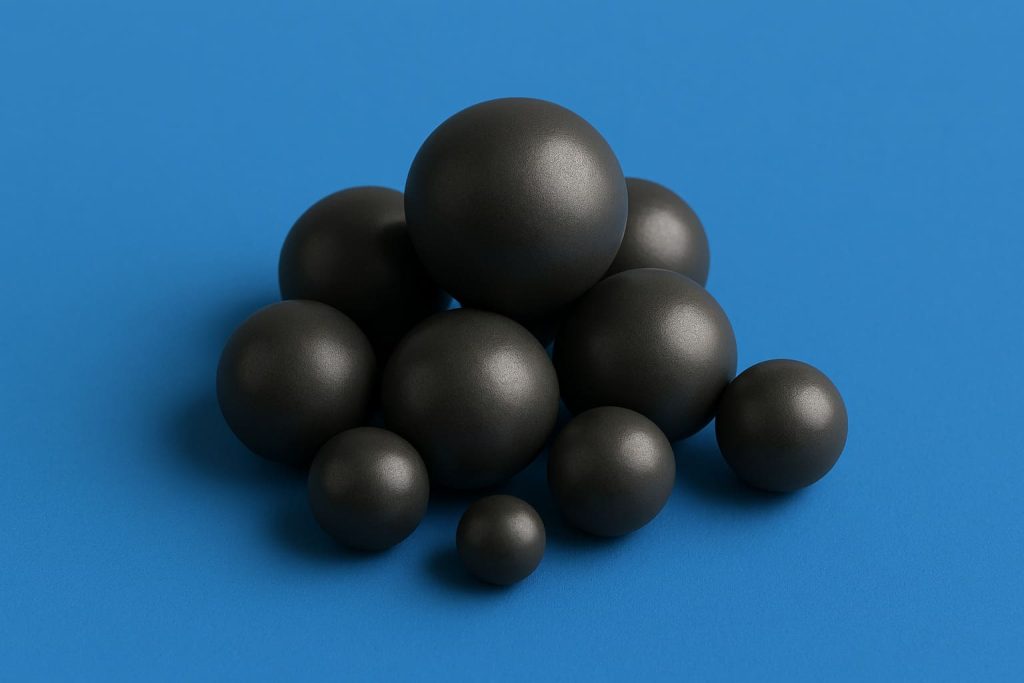

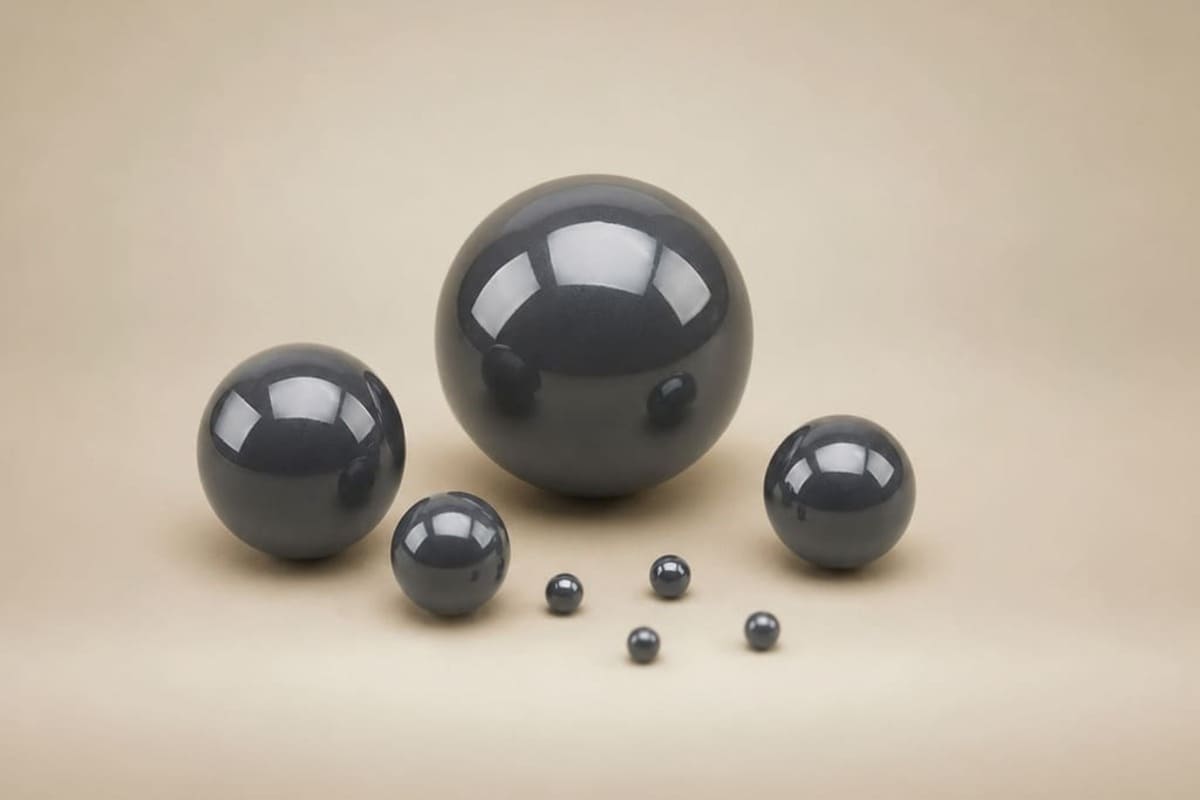

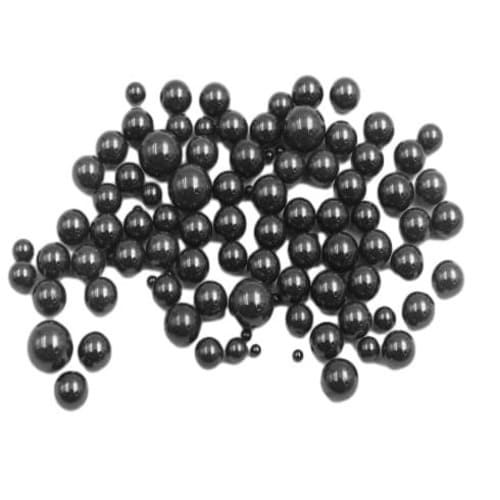

Silicon Nitride Ceramic Ball
Silicon nitride ceramic balls are high-performance spherical components manufactured from pure Si₃N₄ through advanced sintering processes. They offer an exceptional combination of low density (3.2 g/cm³), high hardness, superior fracture toughness, and excellent thermal stability with minimal expansion (2.8×10⁻⁶/℃), enabling reliable operation above 800℃. Precision-finished to sub-micron accuracy, they significantly reduce vibration and centrifugal forces in high-speed applications.These balls are essential in precision bearings, aerospace systems, electric vehicle drivetrains, and industrial valves. Their self-lubricating nature and corrosion resistance enhance durability, typically extending bearing service life by 5–10 times in demanding environments.
- Custom and standard options available.
- Fast lead times guaranteed.
- High performance at a competitive price.
Silicon Nitride Ceramic Ball Data Sheet
| Purity: | ≥99% |
| Color: | Black |
| Chemical Formula: | Si3N4 |
| Material Grades: | HMSN1000, HMSN2000, HMSN3000, HMSN4000 |
| Density: | 3.20 g/cm3 |
| Diameter: | Φ0.8-φ50.8 mm, or customized |
| Precision Grade: | G5~G60 |
Silicon Nitride Ceramic Ball Description
Silicon nitride ceramic balls are high-performance precision ceramic components manufactured from high-purity silicon nitride powder through isostatic pressing and high-temperature gas pressure sintering processes. With a density of only 3.2 g/cm³ and hardness exceeding Hv 1500, they combine excellent flexural strength (>800 MPa) and fracture toughness (6-8 MPa·m¹/²). The material exhibits an extremely low thermal expansion coefficient (2.8×10⁻⁶/℃) and outstanding high-temperature stability, allowing long-term operation above 800℃ without plastic deformation. After nano-level precision grinding, the balls achieve ultra-smooth surfaces (Ra ≤ 0.01 μm) and G5-grade sphericity, effectively reducing friction loss and vibration noise during high-speed operation. Due to their self-lubricating properties, corrosion resistance, and electrical insulation capabilities, they are widely used in critical applications such as high-speed machine tool spindle bearings, aerospace engine components, new energy vehicle drive motors, precision instrument guides, and high-end chemical pump valves. In hybrid ceramic bearing configurations, they can increase fatigue life by 5-10 times, establishing themselves as core fundamental components in modern high-precision, high-reliability mechanical systems.
Silicon Nitride Ceramic Ball Features
- High Strength & Toughness – Flexural strength >800 MPa, fracture toughness 6-8 MPa·m¹/²
- Lightweight & Hard – Density only 3.2 g/cm³, hardness >Hv 1500
- Excellent Thermal Stability – Thermal expansion coefficient 2.8×10⁻⁶/℃, temperature resistance >800℃
- Precision Surface – Achieves G5 grade sphericity, surface roughness Ra≤0.01 μm
- Low Friction & Self-Lubricating – Low friction coefficient with self-lubricating properties
- Corrosion Resistant & Insulating – Resists acid/alkali corrosion, excellent electrical insulation
- High-Speed Compatibility – Effectively reduces centrifugal force and vibration at high speeds
- Extended Service Life – Can increase hybrid bearing lifespan by 5-10 times
Silicon Nitride Ceramic Ball Applications

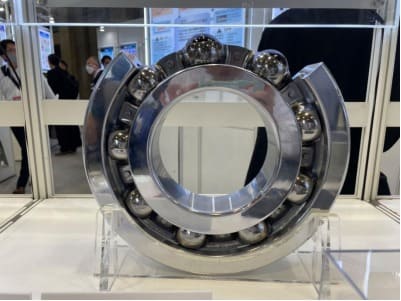

- High-speed precision bearings for machine tool spindles and motorized spindles.

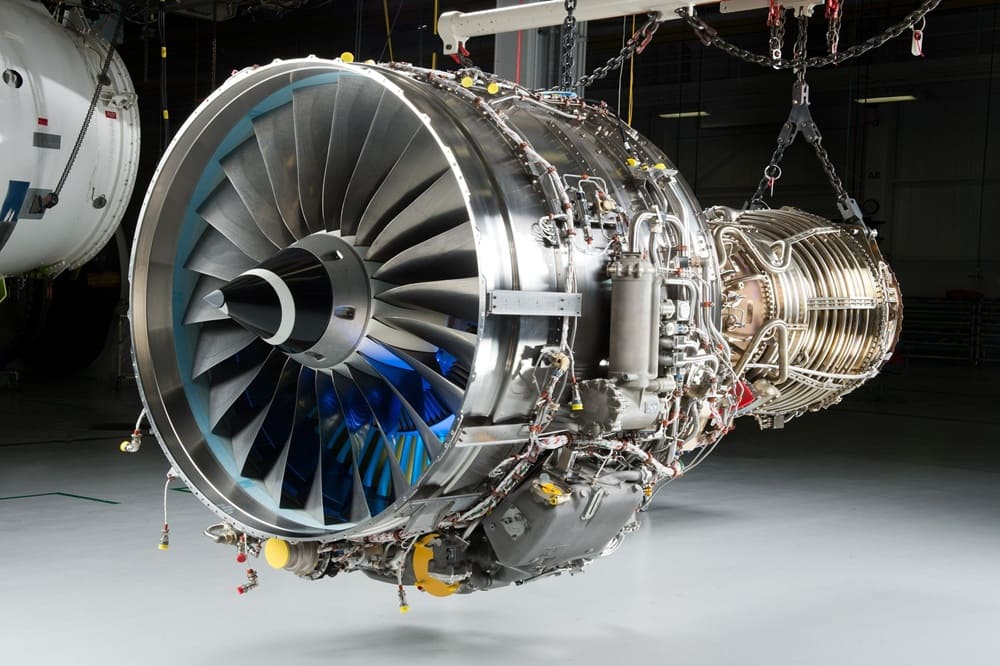

- Aerospace engine bearings and precision balls for navigation systems.

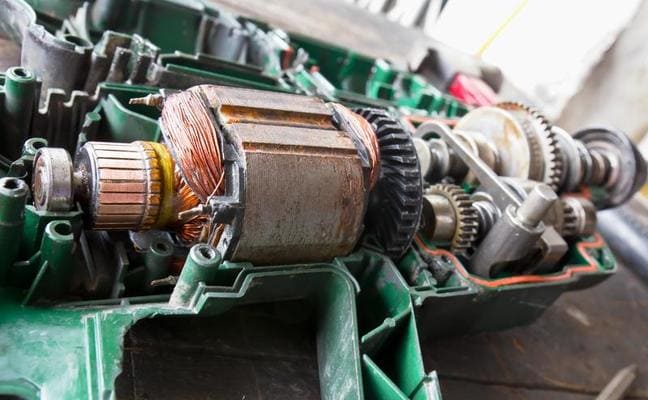

- New energy vehicle drive motor bearings and precision transmission in electronic control systems.
- Medical high-speed dental drills and precision motion components in surgical robots.
- Corrosion-resistant pump valves and sealing spheres in semiconductor vacuum equipment.
- Precision guiding elements in measuring devices and optical instruments.
- High-end sports equipment bearings for competition bicycles and professional fishing reels.
- Scientific research equipment for motion components in ultra-high vacuum and extreme temperature environments.
Silicon Nitride Ceramic Packaging
Silicon nitride ceramic products are typically packaged in vacuum-sealed bags to prevent moisture or contamination and wrapped with foam to cushion vibrations and impacts during transport, ensuring the quality of products in their original condition.
Download
- SAFETY DATA SHEET (SDS) -Silicon Nitride Ceramic Ball
FAQ
What is a Silicon Nitride Ceramic Ball?
A Silicon Nitride Ceramic Ball is a precision ceramic sphere made from high-performance silicon nitride material, featuring lightweight, high hardness, and high-temperature resistance, serving as a critical moving component in high-speed, high-precision equipment.
What are the main characteristics of silicon nitride ceramic balls?
Key characteristics include: low density (3.2 g/cm³), high hardness (HV > 1500), excellent fracture toughness, extremely low thermal expansion coefficient (2.8×10⁻⁶/℃), high-temperature resistance (>800℃), self-lubricating properties, and corrosion resistance.
What accuracy grades are available for silicon nitride ceramic balls?
Typically achieving G5-G10 accuracy grades, with spherical error controlled within 0.1 microns and surface roughness Ra values as low as 0.01 microns.
What advantages do they offer over traditional steel balls?
Significant advantages include: approximately 60% weight reduction, lower friction coefficient, stronger corrosion resistance, and 5-10 times longer service life, particularly suitable for high-speed, high-temperature, and corrosive environments.
Do these ceramic balls require special lubrication?
With self-lubricating properties, they reduce dependence on lubricants, but proper lubrication is still recommended for high-speed, high-load applications to extend service life.
