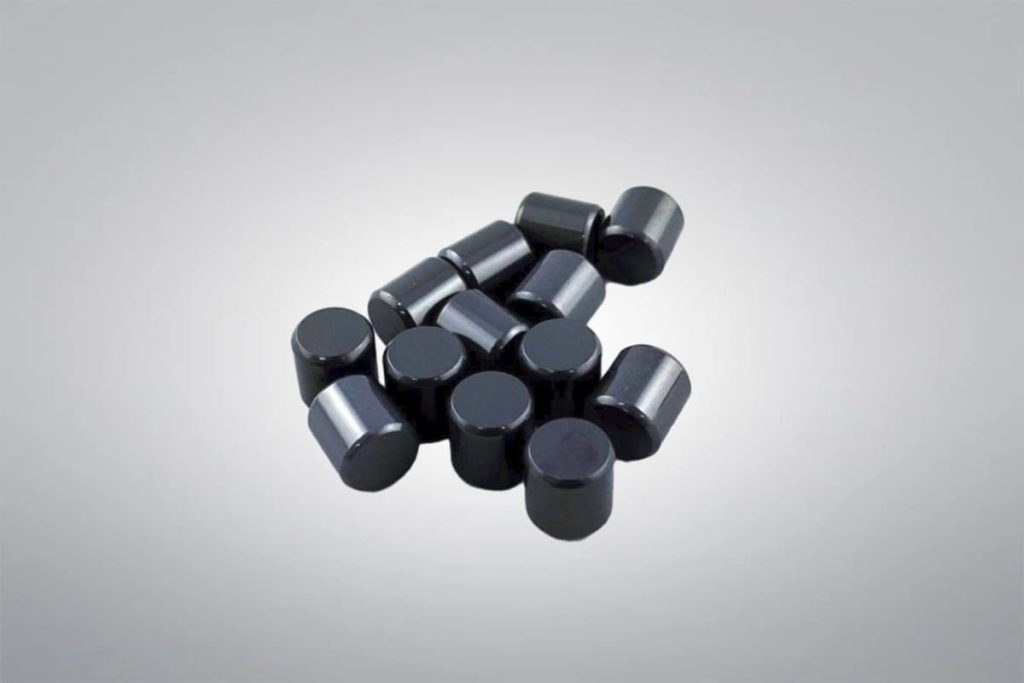

Silicon Nitride Bearing Roller
Silicon nitride bearing rollers are high-technology ceramic rolling elements precision-engineered from advanced silicon nitride (Si₃N₄) material, integrating exceptional mechanical strength, superior wear resistance, excellent corrosion resistance, and notably low density (approximately 40% of steel bearings) into a single component, delivering outstanding performance under high-speed, heavy-load, extreme-temperature, and poor-lubrication operating conditions; their extremely low coefficient of thermal expansion ensures dimensional stability across wide temperature ranges, while self-lubricating properties and high hardness significantly reduce friction coefficients and extend service life, making them widely adopted in aerospace engine spindles, high-speed machine tool motorized spindles, new energy vehicle drive motors, wind turbine generators, and high-performance racing transmission systems where ultimate reliability, rotational speed, and durability are critically demanded, thereby serving as an advanced replacement solution for traditional steel rollers.
- Custom and standard options available.
- Fast lead times guaranteed.
- High performance at a competitive price.
Silicon Nitride Bearing Roller Data Sheet
| Purity: | ≥99% |
| Color: | Black |
| Shape: | Cylinder |
| Chemical Formula: | Si3N4 |
| Material Grades: | HMSN1000, HMSN2000, HMSN3000, HMSN4000 |
| Density: | 3.20 g/cm3 |
| Diameter: | φ6×6~φ50.8×50.8 mm, or customized |
Silicon Nitride Bearing Roller Description
Silicon nitride bearing rollers are precision ceramic rolling elements manufactured from high-purity Si₃N₄ powder through advanced processes such as isostatic pressing and gas pressure sintering. Their microstructure consists of interlocking β-silicon nitride columnar crystals, endowing the material with exceptional fracture toughness (6-8 MPa·m¹/²) and flexural strength (>800 MPa). After diamond grinding, the roller surface achieves mirror-level smoothness (Ra ≤ 0.02 μm) with sphericity errors controlled within 0.1 microns.Under extreme operating conditions, these components demonstrate outstanding engineering performance: density as low as 3.2 g/cm³ reduces centrifugal force by 60% compared to steel rollers; elastic modulus reaching 310 GPa ensures shape integrity even after 2 million cyclic loads; thermal expansion coefficient as low as 2.8×10⁻⁶/℃ maintains constant bearing clearance across a temperature range of -60℃ to 800℃. Special surface modification techniques stabilize the friction coefficient between 0.001-0.005, enabling boundary lubrication even under oil-deficient conditions.
Silicon Nitride Bearing Roller Specification
| Material | Si3N4 |
| Size | φ6×6 mm~φ50.8×50.8 mm, or customized. |
| Sinter Technology | GPS, HIP |
| Applications | 1mm dental drill bearings 10mm insulated bearings for new energy automobile motors 50.8mm insulated bearings for wind power generation Spindle bearings for machine tools |
Silicon Nitride Bearing Roller Features
- Extremely Low Density & High Stiffness
Density (~3.2 g/cm³) is only 40% that of steel, significantly reducing centrifugal force at high speeds, while elastic modulus reaches 310 GPa, ensuring high rigidity and dimensional stability. - Outstanding Mechanical Properties
High flexural strength (>800 MPa) and excellent fracture toughness (6-8 MPa·m¹/²), with fatigue and impact resistance far surpassing traditional bearing steel. - Excellent Thermal Stability
Very low coefficient of thermal expansion (~2.8×10⁻⁶/℃), minimal dimensional change across a wide temperature range (-60℃ to 800℃), helping maintain bearing preload and clearance. - Superior Wear Resistance & Low Friction
High surface hardness (Hv 1300-1500), ultra-low friction coefficient (0.001–0.005) after precision polishing, self-lubricating properties extend service life. - Corrosion Resistance & Electrical Insulation
Resistant to most acids, alkalis, and salt solutions; electrically insulating, preventing electrical erosion damage, suitable for humid, corrosive, and electrically active environments. - Anti-Galling & Non-Adhesive
Low affinity between ceramic surface and metals, effectively preventing cold welding and adhesive wear, especially under starved or boundary lubrication conditions.
Silicon Nitride Bearing Roller Applications
- High-Speed Machine Tool Spindles
Used in motorized spindles for CNC machining centers, capable of high rotational speeds (DN value >3×10⁶), reducing temperature rise and vibration while improving machining accuracy and stability. - Aerospace Engines
Applied in aero-engine main shafts, auxiliary power units (APUs), and helicopter transmission systems, meeting extreme temperature, high load, and long-life requirements. - New Energy Vehicle Drive Motors
Used in electric vehicle drive motor bearings, reducing centrifugal load, increasing maximum speed limits, and providing electrical insulation to prevent shaft current corrosion. - Wind Turbine Generators
Applied in wind turbine main shaft bearings and generator bearings, suitable for low-temperature, high-humidity, and variable load conditions, minimizing maintenance needs and extending service life. - Precision Instruments & Robotics
Used in high-precision industrial robot joint bearings, semiconductor manufacturing equipment, and optical instrument spindles, ensuring motion accuracy and low friction loss. - Racing & High-Performance Transmission Systems
Applied in racing gearboxes and high-performance vehicle drive shaft bearings, reducing weight and enhancing reliability at high speeds. - Medical Equipment Spindles
Used in dental drills, surgical power tools, and high-speed rotating components of imaging devices, meeting sterile environment and high-reliability requirements. - Chemical & Special Environment Equipment
Suitable for corrosion-resistant pumps, compressors, and mixing equipment bearings, resisting acid/alkali medium erosion and preventing electrochemical corrosion.
Silicon Nitride Ceramic Packaging
Silicon nitride ceramic products are typically packaged in vacuum-sealed bags to prevent moisture or contamination and wrapped with foam to cushion vibrations and impacts during transport, ensuring the quality of products in their original condition.
Download
- SAFETY DATA SHEET (SDS) -Silicon Nitride Bearing Roller
FAQ
What is a Silicon Nitride Bearing Roller?
A Silicon Nitride Bearing Roller is a precision rolling element made from high-performance silicon nitride ceramic, used to replace traditional steel rollers, especially in high-speed, high-load, and extreme operating conditions.
What are the advantages of silicon nitride rollers over steel rollers?
Key advantages include lightweight (density only 40% of steel), high stiffness, excellent wear and fatigue resistance, very low thermal expansion coefficient, good corrosion resistance, and electrical insulation properties.
How high a rotational speed can silicon nitride rollers withstand?
They maintain stable performance at high speeds with DN values (bearing bore mm × rpm) exceeding 3 million, with significantly lower temperature rise and vibration compared to steel rollers.
Do they require special lubrication methods?
Conventional lubricants can be used, but their self-lubricating properties and low friction characteristics make them perform exceptionally well under starved or boundary lubrication conditions.
What should be noted during installation?
Avoid direct impact; use dedicated installation tools; maintain cleanliness to prevent contamination; and pay attention to tolerance fits with the housing and shaft.
