Magnesium Oxide Crucible
- Custom and standard options available.
- Fast lead times guaranteed.
- High performance at a competitive price.

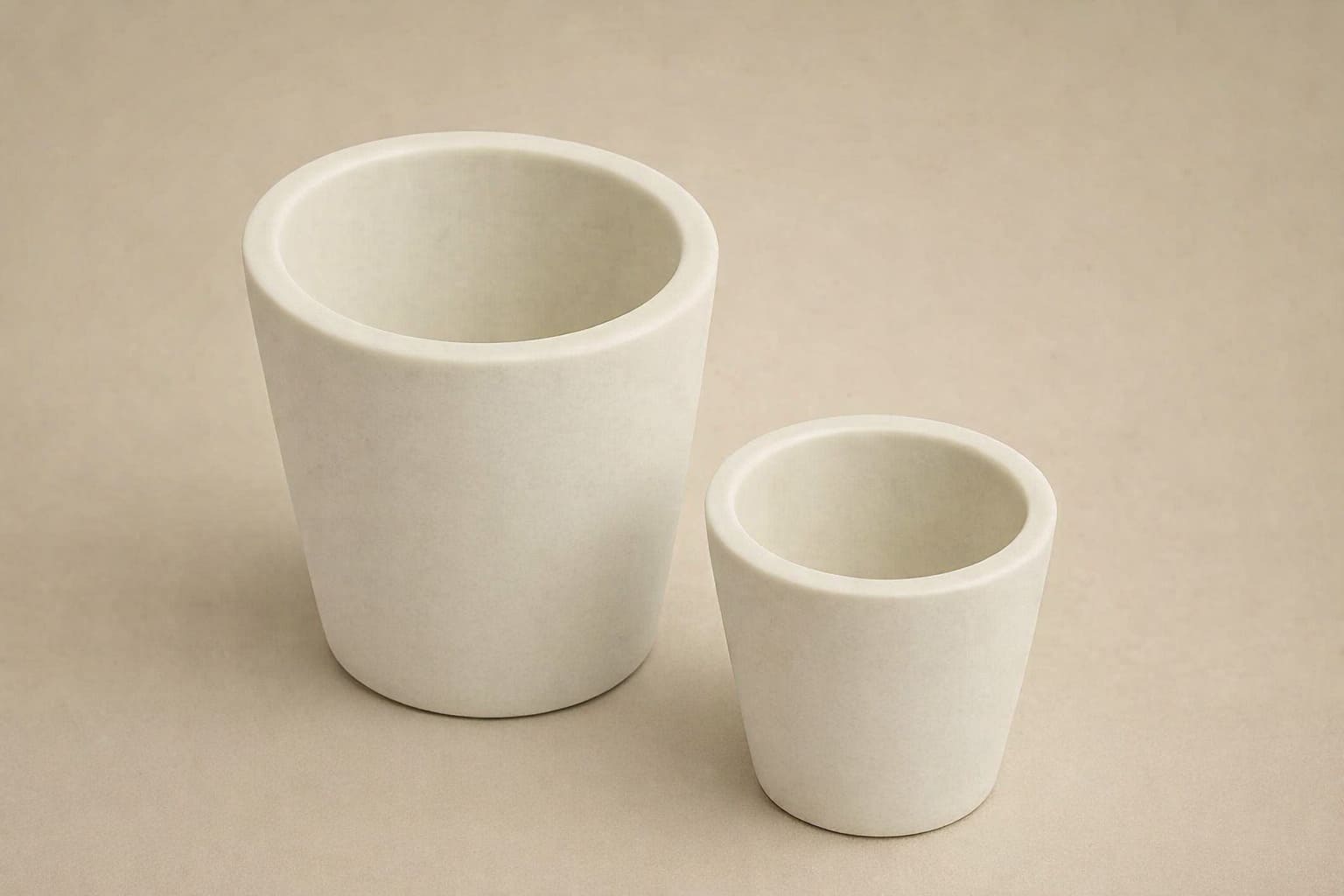

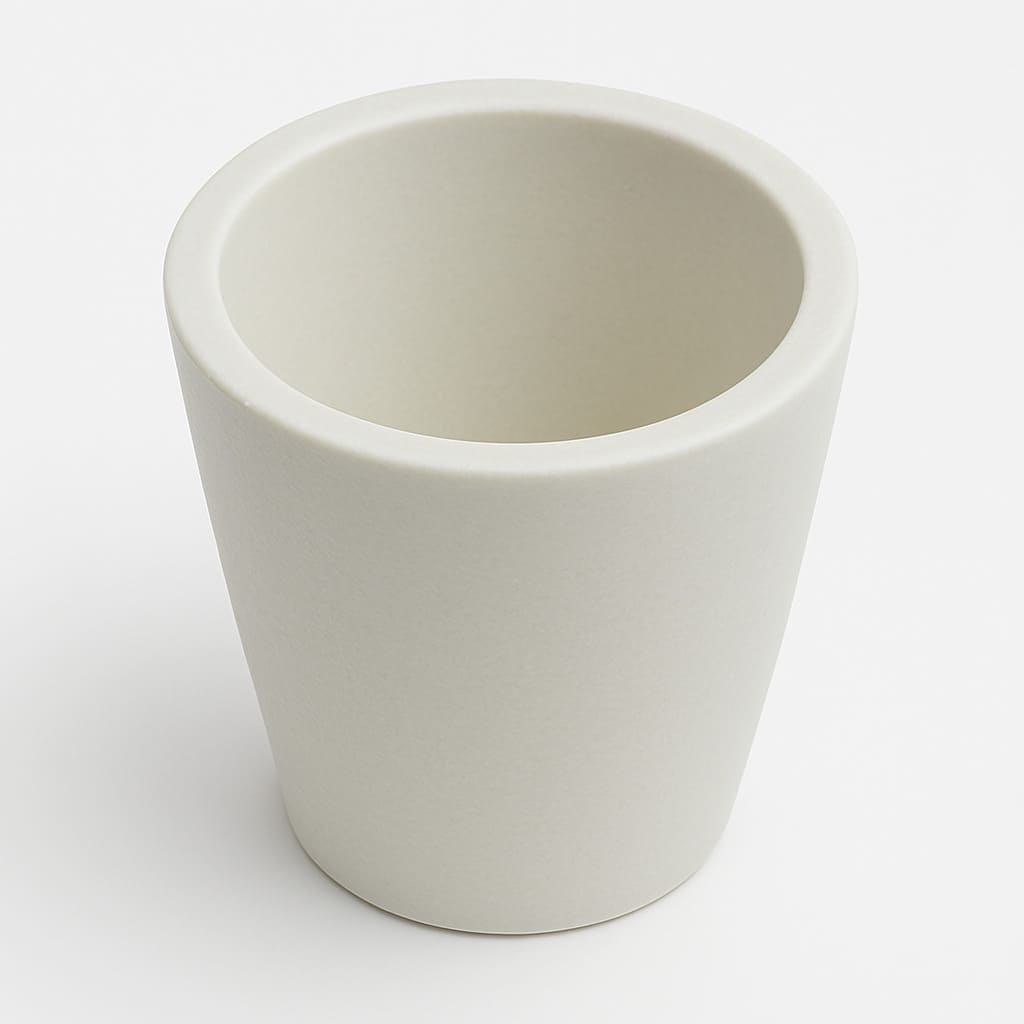

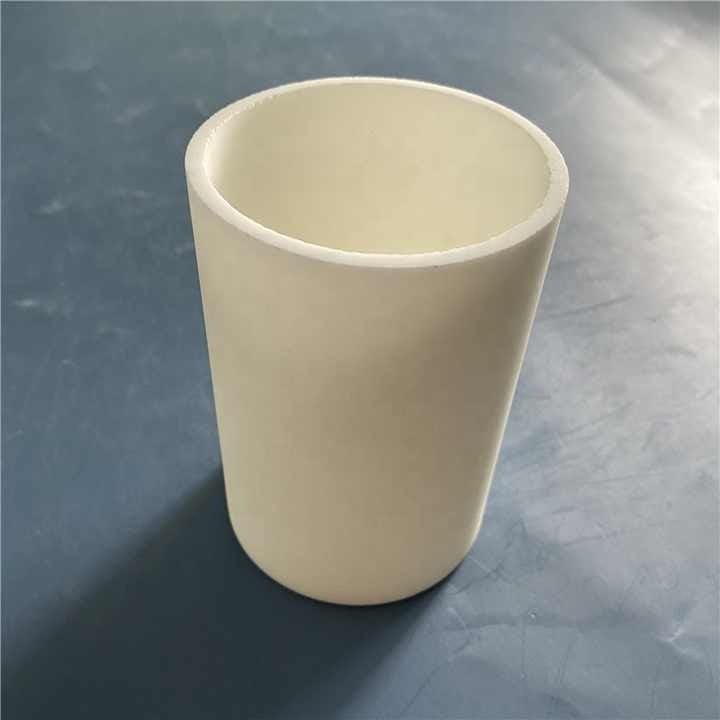

A Magnesium Oxide (MgO) crucible is a custom, high-temperature ceramic vessel made from pure MgO. It withstands up to 2800°C and offers excellent resistance to thermal shock and chemical corrosion, especially from basic slags and reactive metals. Its high purity prevents contamination in sensitive applications like melting rare metals, handling nuclear materials, and synthesizing high-purity ceramics. Available in custom shapes and sizes, MgO crucibles are essential for advanced research, metallurgy, and industrial processes requiring superior thermal stability and material integrity.NexusX Advanced Materials, as a premier manufacturer and supplier of high-quality Magnesium Oxide Crucible products, focuses on producing high-precision aluminum nitride silicon structural compenents through advanced technologies for diverse application fields.
Or email us at [email protected]
Magnesium Oxide Crucible Data Sheet
| Color: | White/Ivory |
| Chemical Formula: | MgO |
| Refractoriness: | Super high grade (Refractoriness > 2000°) |
| Density: | 3.20 g/cm3 |
| Type: | Dielectric ceramic |
| Dimension: | customized |
| Shape: | Cylinder, Conical Cylinder, Rectangular, T-shape, or customized. |
| Working temperature: | 2000°C |
| Compressive strength: | 1000 MPa |
| Flexural strength: | 300 MPa |
| Surface: | Glass/Polished |
| Processing services: | Bending, welding, punching, decoiling, cutting, molding |
Magnesium Oxide Crucible Description
A magnesium oxide crucible is a high-performance ceramic container crafted from premium-grade magnesium oxide, specifically engineered for demanding high-temperature applications. It excels in environments where extreme heat, thermal shock resistance, and chemical inertness are paramount. With a melting point exceeding 2800°C, it reliably operates in continuous service at temperatures up to 2200°C, maintaining structural integrity in both oxidizing and inert atmospheres. The crucible demonstrates notable resistance to basic slags and molten metals, particularly reactive and refractory metals, while its high purity minimizes contamination risks in sensitive processes. Commonly utilized in advanced metallurgy, nuclear fuel processing, crystal growth, and the synthesis of high-purity ceramics, its design can be customized to meet specific geometric and functional requirements, making it an indispensable tool in research and industrial settings that operate at the forefront of materials science and high-temperature technology.
Magnesium Oxide Crucible Chemical Compositions
| Composition | Content (%) |
|---|---|
| SiO₂ | 0.1 |
| Al₂O₃ | 0.1 |
| MgO | 98 |
| CaO | 0.1 |
| CrO | 0.1 |
| SiC | 0.1 |
Magnesium Oxide Crucible Features
- Extreme Temperature Resistance: Withstands ultra-high temperatures, suitable for use up to 2200°C.
- High Thermal Shock Resistance: Exhibits good resistance to cracking under rapid temperature changes.
- Superior Chemical Inertness: Resistant to corrosion from many molten metals, especially reactive and refractory ones.
- High Purity Material: Minimizes contamination of melts, ideal for high-purity processing.
- Excellent Electrical Insulator: Provides reliable insulation in high-temperature electrical applications.
Magnesium Oxide Crucible Applications
- Melting of Refractory & Reactive Metals: Ideal for processing metals with extremely high melting points, such as platinum, palladium, rhodium, and reactive metals like uranium and thorium.
- Crystal Growth: Used in processes to grow single crystals of specialized materials, including certain laser crystals and semiconductors, due to high purity and thermal stability.
- Nuclear Fuel Research & Processing: Employed in laboratory and pilot-scale handling, sintering, or analysis of nuclear fuel materials because of its high-temperature performance and compatibility.
- High-Purity Ceramic & Powder Synthesis: Essential for calcining and sintering advanced ceramics, phosphors, and other high-purity powders where contamination must be avoided.
- Advanced Metallurgical Research: Serves as a key tool in research laboratories for alloy development, slag studies, and investigations under extreme temperature conditions.
Magnesium Oxide Ceramic Packaging
Magnesium oxide ceramic products are typically packaged in vacuum-sealed bags to prevent moisture or contamination and wrapped with foam to cushion vibrations and impacts during transport, ensuring the quality of products in their original condition.
Download
- SAFETY DATA SHEET (SDS) -Magnesium Oxide Crucible
FAQ
What is a Magnesium Oxide Crucible? What are its advantages in high-temperature applications?
It is a high-temperature container made from high-purity magnesium oxide ceramic. Key advantages include an extremely high melting point (>2800°C), excellent thermal shock resistance, and corrosion resistance to basic slags/reactive metals.
What is the maximum operating temperature of a Magnesium Oxide Crucible?
Under inert or oxidizing atmospheres, it can operate continuously up to 2200°C, with short-term tolerance for higher temperatures. The actual temperature depends on specific conditions.
Which metals are suitable for melting in a Magnesium Oxide Crucible?
It is ideal for high-melting-point metals (e.g., platinum, rhodium) and reactive metals (e.g., uranium, thorium), but not recommended for strongly acidic melts or reactive low-melting-point metals like lithium/aluminum.
What is the difference between MgO and Alumina (Al₂O₃) Crucibles?
MgO crucibles have a higher melting point (>2800°C vs. ~2050°C) and better alkali resistance, but lower mechanical strength than alumina. Alumina is more versatile and cost-effective.
Do Magnesium Oxide Crucibles contaminate molten materials?
High-purity MgO crucibles (≥99% purity) pose minimal contamination risk, making them suitable for high-purity processes like crystal growth or alloy synthesis.
