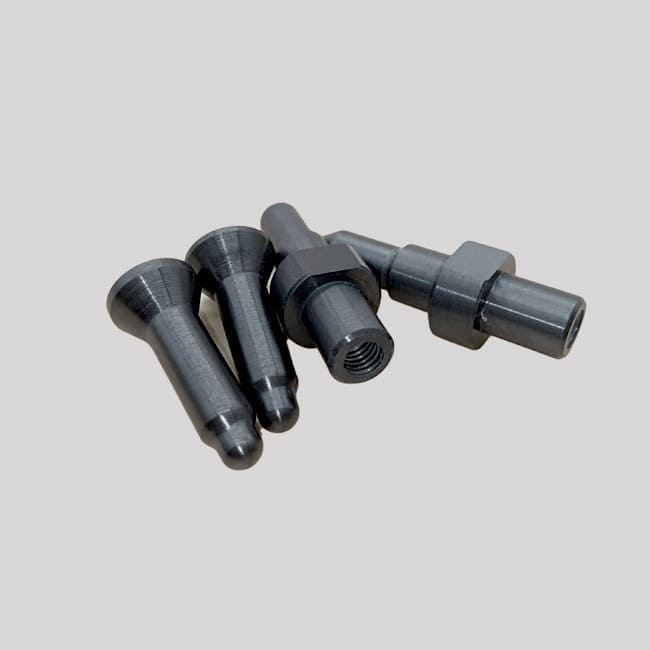

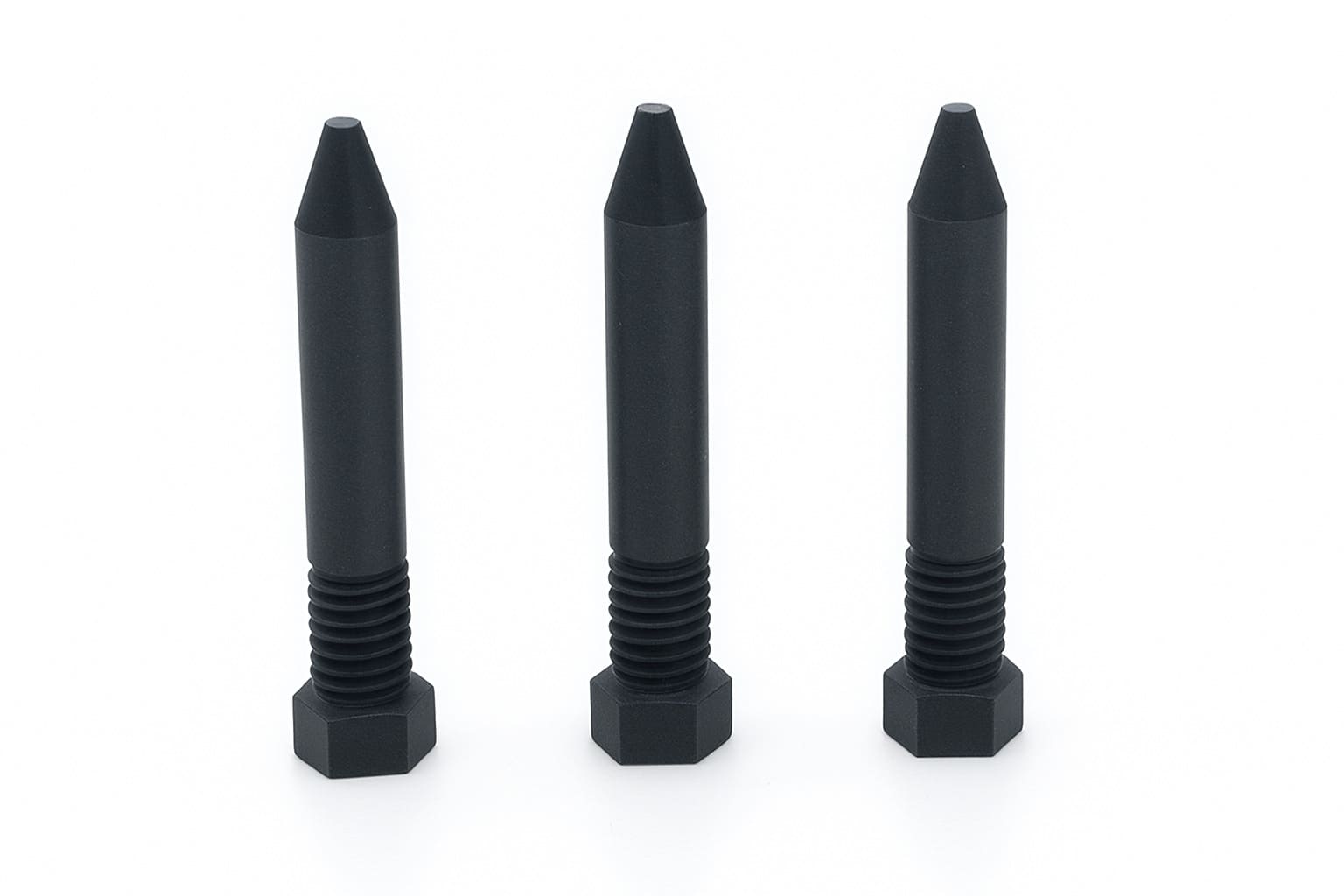

Silicon Nitride Welding Guide Pin
- Custom and standard options available.
- Fast lead times guaranteed.
- High performance at a competitive price.
The silicon nitride welding guide pin is made of high-performance ceramic, withstanding temperatures above 1400°C and offering excellent thermal shock resistance and dimensional stability. Its high hardness resists spatter abrasion, while the chemically inert, self-lubricating surface prevents metal adhesion and enables rapid, precise positioning and release—boosting welding accuracy and efficiency. Ideal for aerospace, new energy battery, and semiconductor manufacturing. NexusX Advanced Materials, as a premier manufacturer and supplier of high-quality Silicon Nitride Welding Guide Pin products, focuses on producing high-precision aluminum nitride silicon structural compenents through advanced technologies for diverse application fields.
Or email us at [email protected]
Silicon Nitride Welding Guide Pin Data Sheet
| Purity: | ≥99% |
| Color: | Black |
| Chemical Formula: | Si3N4 |
| Material Grades: | HMSN1000, HMSN2000, HMSN3000, HMSN4000 |
| Density: | 3.20 g/cm3 |
| Dimension: | customized |
Silicon Nitride Welding Guide Pin Description
The silicon nitride welding guide pin is a high-performance ceramic precision component designed for high-temperature and demanding welding environments. Made from silicon nitride (Si₃N₄), it exhibits outstanding high-temperature resistance (capable of long-term use above 1400°C) and excellent thermal shock resistance, maintaining dimensional accuracy and structural integrity throughout welding thermal cycles. With high surface hardness and strong wear resistance, it effectively withstands weld spatter and mechanical abrasion. Additionally, due to the inherent chemical inertness of silicon nitride, it prevents adhesion or chemical reactions with molten metals, ensuring precise and clean workpiece positioning. Featuring a smooth surface with self-lubricating properties, the pin enables rapid and repeatable positioning and release operations, significantly improving welding assembly efficiency and process consistency. It is widely used in high-precision manufacturing applications such as aerospace engine components, new energy battery welding, semiconductor equipment, and high-temperature specialized material welding.
Silicon Nitride Welding Guide Pin Features
- Excellent High-Temperature Resistance：Withstands sustained temperatures above 1400°C, suitable for high-intensity welding environments.
- Superior Thermal Shock Resistance：Tolerates rapid temperature fluctuations during welding while maintaining structural integrity.
- Exceptional Hardness and Wear Resistance：High surface hardness provides strong resistance to weld spatter and mechanical abrasion.
- Chemically Inert Surface：Prevents adhesion to molten metals, avoiding workpiece contamination and ensuring welding cleanliness.
- Self-Lubricating Property：Smooth surface enables quick positioning and release without additional lubrication.
- High Dimensional Stability：Maintains precise geometry and tolerances throughout high-temperature thermal cycles.
- Lightweight Design：Significantly lighter than metal guide pins for easier handling and installation.
- Insulation and Corrosion Resistance：Good electrical insulation and resistance to acid/alkali corrosion for complex working conditions.
Silicon Nitride Welding Guide Pin Applications
- Aerospace ：Used in welding turbine blades and combustion chambers for heat resistance and contamination-free performance.
- Battery Manufacturing： Enables contamination-free electrode positioning in lithium battery and fuel cell welding.
- Semiconductor Equipment ：Provides high-cleanliness positioning for vacuum chambers and wafer transfer systems.
- Medical Device Welding ：Ensures precision in welding surgical instruments and implants with biocompatible requirements.
- High-Temperature Alloy Welding： Supports fixture positioning for nickel-based and cobalt-based superalloy welding.
- Laser Welding Lines： Serves as durable positioning modules for high-speed automated laser welding.
- Nuclear Industry ：Applied in welding nuclear fuel cladding and cooling pipelines with radiation resistance.
- Electronics Welding： Ensures precise positioning in micro-welding of sensors and electronic relays.
- Chemical Pipelines： Used in welding corrosion-resistant alloy pipelines for chemical transport.
- Research Applications： Supports experimental welding of advanced materials like superconductors.
Silicon Nitride Ceramic Packaging
Silicon nitride ceramic products are typically packaged in vacuum-sealed bags to prevent moisture or contamination and wrapped with foam to cushion vibrations and impacts during transport, ensuring the quality of products in their original condition.
Download
- SAFETY DATA SHEET (SDS) -Silicon Nitride Welding Guide Pin
FAQ
What is a silicon nitride welding guide pin?
A silicon nitride welding guide pin is a precision positioning tool made from high-performance silicon nitride ceramic, specifically designed for high-temperature and high-precision welding applications.
What are the main advantages compared to metal guide pins?
Key advantages include: high-temperature resistance (above 1400°C), thermal shock resistance, non-adhesion to molten metal, wear resistance without lubrication, and excellent dimensional stability.
Which welding processes are they suitable for?
Suitable for high-energy beam welding processes like laser welding, electron beam welding, plasma welding, and positioning welding of superalloys and precision components.
How to properly install silicon nitride guide pins?
Use elastic mounting structures instead of rigid clamping; clean contact surfaces before installation to ensure no impurities; avoid impact installation.
How to select the right model when purchasing?
Provide parameters such as welding temperature, positioning accuracy, contact materials, and operating environment; suppliers will recommend matching material grades and structural designs.
Get A Quote
Request a personalized quote tailored to your specific requirements.
