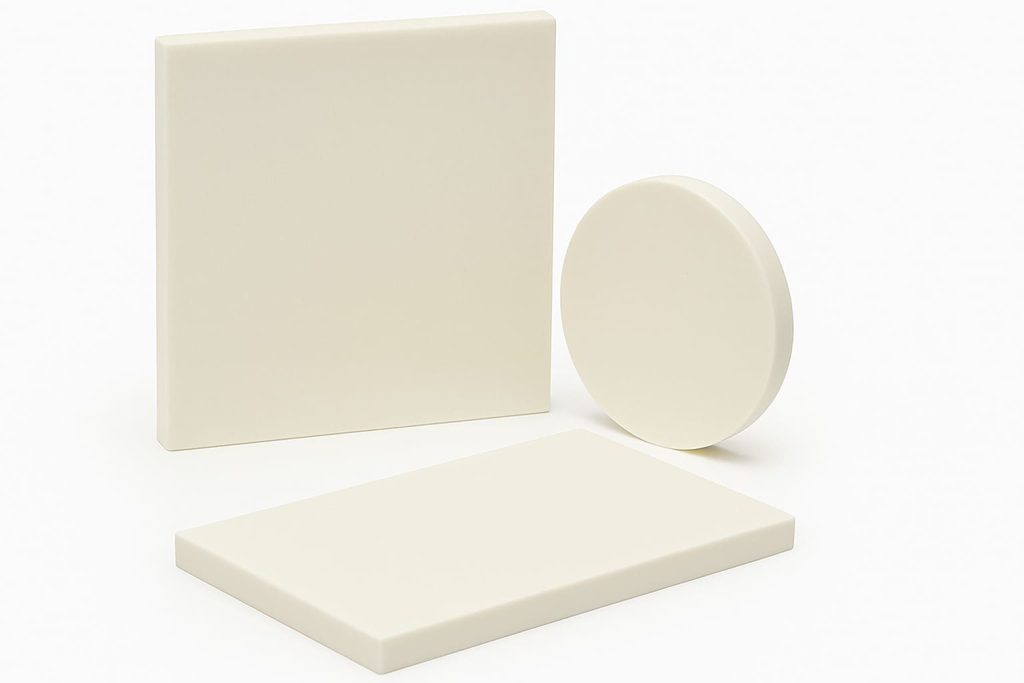

Macor Plate/Sheet/Disc
Macor plates/sheets/discs are specialized machinable glass-ceramic products. Manufactured from high-strength, high-purity Macor material, this product series is available in various standard sizes and thickness specifications, and can also be custom-processed according to specific requirements. These material products retain the excellent properties of Macor material, including outstanding mechanical strength, exceptional insulation performance, good heat resistance, and stable chemical inertness.
- Custom and standard options available.
- Fast lead times guaranteed.
- High performance at a competitive price.
Macor Plate/Sheet/Disc Data Sheet
| Color: | White |
| Material Composition: | Fluorphlogopite & Borosilicate Glass |
| Dimensions: | Customized |
| Processing Precision: | 0.01mm |
| Roughness: | 0.8μm |

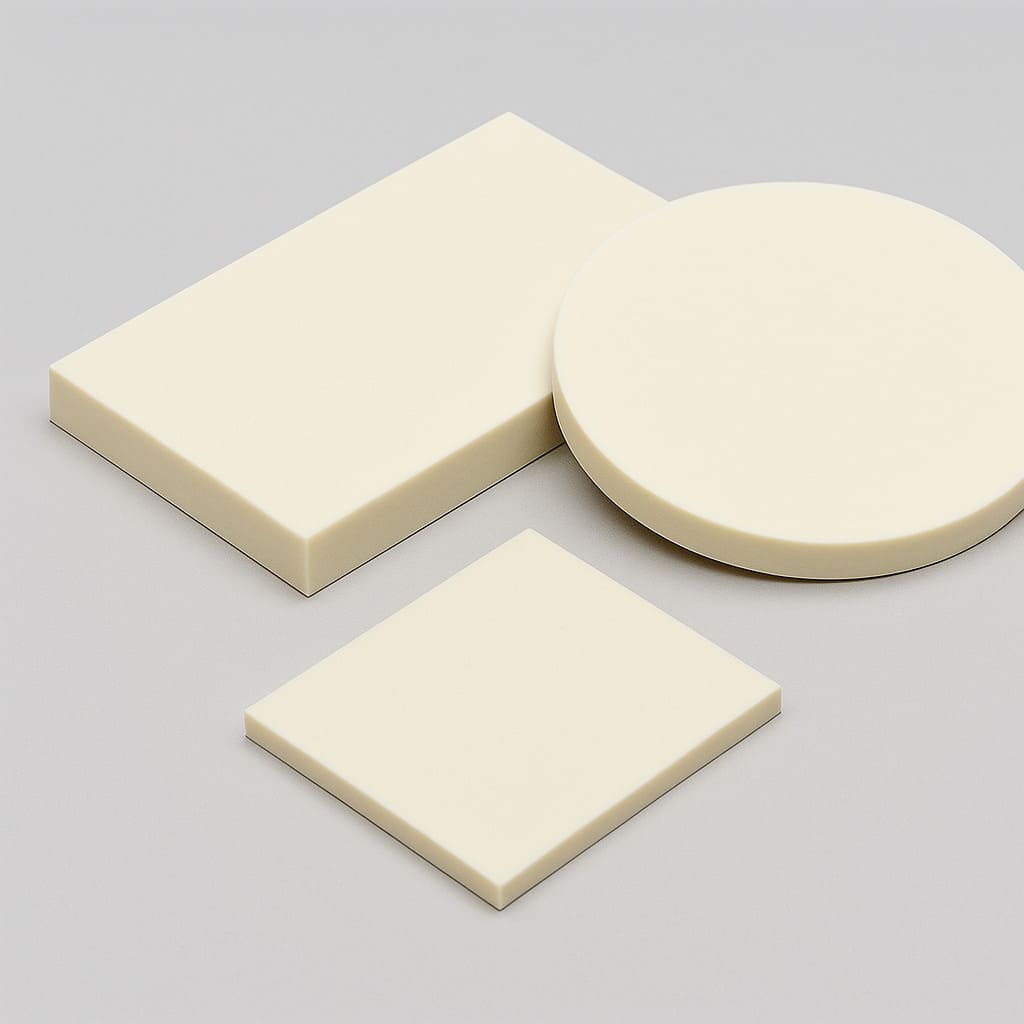

Macor Plate/Sheet/Disc Description
- Macor plates, sheets, and discs represent the versatile, foundational form of machinable glass-ceramic, offering engineers and manufacturers unparalleled design flexibility and convenience. Fabricated from pure, homogeneous Macor material, these substrates are available in thicknesses ranging from a few millimeters to several tens of millimeters, with diameters or side lengths customizable to requirement. They serve as the ideal starting stock for creating a wide array of high-performance components.
- Their core value lies in the ability to be cut, drilled, milled, and turned directly from these flat, dense blanks into highly complex precision parts—be it intricate insulating substrates with internal channels, multi-aperture sample holders, or precise spacers and viewport frames for scientific instruments. This “from-blank-to-finished-part” approach not only minimizes material waste but also significantly accelerates the cycle from design to prototype to production.
- Inheriting the intrinsic superior properties of Macor material, these plates/sheets/discs offer high-temperature resistance up to 800°C, excellent electrical insulation and vacuum integrity, near-zero porosity, and thermal expansion compatible with metals. They are extensively used in semiconductor equipment as etch components, aerospace as radome substrates, research instrumentation as insulating sample stages, and medical devices as non-magnetic carriers. Macor plates, sheets, and discs transform top-tier material performance into accessible innovation potential.
Macor Plate/Sheet/Disc Chemical Compositions
| Element / Compound | Approximate Weight (%) |
|---|---|
| Silicon (SiO₂) | 46% |
| Magnesium (MgO) | 17% |
| Aluminum (Al₂O₃) | 16% |
| Potassium (K₂O) | 10% |
| Boron (B₂O₃) | 7% |
| Fluorine (F) | 4% |
Macor Plate/Sheet/Disc Features
- Exceptional Machinability
- Can be machined precisely using standard metalworking tools (mills, lathes, drills) without post-firing or heat treatment. Complex finished parts can be made directly from the blank.
- Superior Electrical Insulation & Vacuum Performance
- Maintains high insulation resistance and dielectric strength even at elevated temperatures and high frequencies.
- Non-porous and dense material with extremely low gas permeability and outgassing, suitable for high and ultra-high vacuum environments.
- Excellent Thermal Stability
- Continuous operating temperature up to 800°C, with short-term exposure capability to 1000°C.
- Coefficient of thermal expansion closely matches most metals (e.g., steel, aluminum), enabling reliable sealing and assembly with metal components and minimizing thermal stress.
- High Mechanical Strength & Dimensional Stability
- Exhibits high hardness, compressive strength, and good wear resistance.
- Maintains excellent dimensional stability over a wide temperature range with no creep, ideal for precision platforms and metrology bases.
- Good Chemical Inertia
- Resistant to most acids, alkalis, solvents, and molten metals (except hydrofluoric acid and hot concentrated phosphoric acid).
- Zero Porosity & Non-Magnetic
- Completely dense, non-porous material that is impermeable to gases and non-hygroscopic.
- Entirely non-magnetic, making it suitable for applications sensitive to magnetic fields such as MRI and precision sensors.
Macor Plate/Sheet/Disc Applications
- Semiconductor Manufacturing：Used as insulation components in vacuum chambers, plasma etching fixtures, and wafer handling disk substrates.
- Precision Instruments：Applied in electron microscope sample stages, laser optical platform bases, and insulation supports for scientific equipment.
- Aerospace：Utilized in radome structural layers, high-temperature viewports for spacecraft, and thermal-resistant electrical insulation panels.
- Medical Devices：Fabricated into non-magnetic components for MRI systems, precision guide rails for medical imaging equipment, and high-temperature sterilization trays.

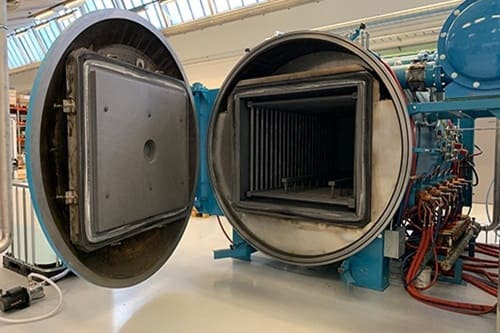

- Industrial Manufacturing：Serves as ultra-high vacuum flange seals, furnace viewports, and reference platforms for precision measuring instruments.
Macor Machinable Glass Ceramic Packaging
Macor machinable glass ceramic products are typically packaged in vacuum-sealed bags to prevent moisture or contamination and wrapped with foam to cushion vibrations and impacts during transport, ensuring the quality of products in their original condition.
Download
- SAFETY DATA SHEET (SDS) -Macor Plate/Sheet/Disc
FAQ
What is Macor Plate/Sheet/Disc material?
Macor plate/sheet/disc is a machinable high-performance glass-ceramic material combining the heat resistance and insulation of ceramics with the machinability of glass.
Is Macor disc suitable for vacuum environments?
Yes. Its non-porous structure and extremely low outgassing rate meet high and ultra-high vacuum requirements.
What is the thermal expansion coefficient of Macor discs?
Approximately 9.3×10⁻⁶/K, similar to most metals, enabling compatible sealing with metal components.
Are Macor sheets magnetic?
Completely non-magnetic, suitable for MRI and other magnetic-sensitive applications.
How to clean Macor disc surfaces?
Clean with isopropyl alcohol or acetone. Avoid cleaners containing hydrofluoric acid.
