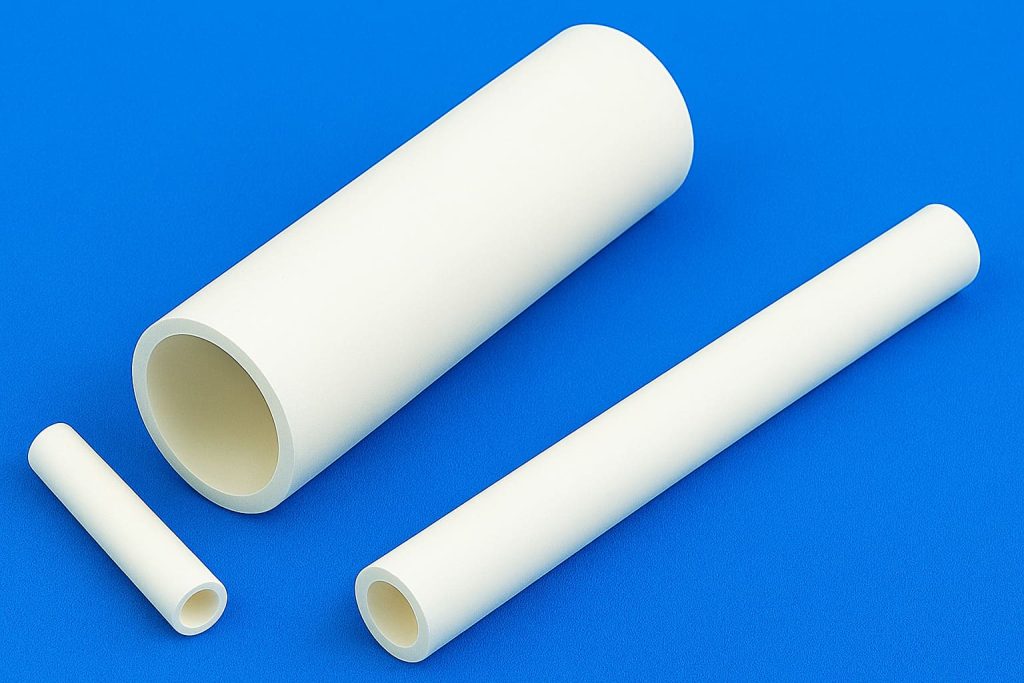

Beryllium Oxide Tube/Pipe
Beryllium oxide (BeO) tube/pipe is a specialized industrial component fabricated from high-purity beryllium oxide ceramic, renowned for its exceptional thermal conductivity, excellent high-temperature stability, and outstanding electrical insulation properties. Capable of withstanding extreme temperatures up to 2300°C in inert atmospheres over prolonged periods, it also demonstrates strong resistance to corrosion from various molten metals and aggressive chemical media. Leveraging its unique thermal management capabilities and structural integrity, BeO tubes are widely used in semiconductor high-temperature processing equipment, neutron moderator components in nuclear reactors, heat dissipation systems for high-power microwave devices, as well as precision heat transfer or insulation assemblies in specialized metallurgy and aerospace applications. Strict safety protocols must be followed during handling due to the health risks associated with inhaling beryllium oxide dust.
- Custom and standard options available.
- Fast lead times guaranteed.
- High performance at a competitive price.
Beryllium Oxide Tube/Pipe Data Sheet
| Color: | White |
| Chemical Formula: | BeO |
| Dimension: | customized |
| Machining Accuracy: | 0.01 mm |
| Surface Roughness: | 0.1 μm |
Beryllium Oxide Tube/Pipe Description
The Beryllium Oxide (BeO) tube or pipe is an advanced ceramic component engineered for extreme thermal and electrical applications, characterized by its exceptional thermal conductivity that rivals metals, outstanding electrical insulation even at elevated temperatures, and remarkable stability in high-temperature environments up to 2300°C in inert atmospheres. It exhibits strong resistance to thermal shock and corrosion from many molten metals and aggressive chemical agents, making it indispensable in specialized fields such as high-power electronics for heat dissipation, semiconductor manufacturing equipment, nuclear reactors as neutron moderator components, aerospace thermal management systems, and precision metallurgy for handling reactive materials, though its safe handling requires stringent controls due to the toxicity of beryllium oxide dust.
Beryllium Oxide Tube/Pipe Chemical Compositions
| Element | Content (ppm) |
|---|---|
| Boron (B) | 2 |
| Aluminum (Al) | 46 |
| Chromium (Cr) | 8 |
| Iron (Fe) | 32 |
| Magnesium (Mg) | 1000 |
| Manganese (Mn) | 2 |
| Nickel (Ni) | 9 |
| Titanium (Ti) | 5 |
| Sodium (Na) | 173 |
| Calcium (Ca) | 31 |
| Silicon (Si) | 2100 |
Beryllium Oxide Tube/Pipe Features
- Exceptional Thermal Conductivity: Offers near-metallic heat dissipation capabilities.
- High-Temperature Stability: Maintains structural integrity up to 2300°C in inert atmospheres.
- Superior Electrical Insulation: Acts as an excellent electrical insulator, even at high temperatures.
- Strong Corrosion Resistance: Resists attack by molten metals and harsh chemicals.
- Good Thermal Shock Resistance: Withstands rapid temperature changes without cracking.
- High Purity & Vacuum Compatibility: Ideal for ultra-clean and high-vacuum semiconductor processes.
- Significant Toxicity Risk: Requires strict safety handling protocols due to hazardous dust.
Beryllium Oxide Tube/Pipe Applications
- High-Power Microwave & RF Devices: Used as carrier rods and heat spreaders for efficient thermal management.
- Semiconductor Manufacturing: Serves as process tubes and liners in high-temperature CVD and diffusion furnaces.
- Nuclear Technology: Utilized as neutron moderator and reflector components in specialized reactor designs.
- Aerospace & Defense: Applied in high-performance thermal insulation and electronic cooling systems.
- Laser & Optoelectronics: Employed as thermally stable housings and heat sinks for high-power laser diodes.
- Advanced Metallurgy: Functions as protective sheaths for thermocouples in molten metal environments.
Beryllium Oxide Ceramic Packaging
Beryllium oxide ceramic products are typically packaged in vacuum-sealed bags to prevent moisture or contamination and wrapped with foam to cushion vibrations and impacts during transport, ensuring the quality of products in their original condition.
Download
- SAFETY DATA SHEET (SDS) -Beryllium Oxide Tube/Pipe
FAQ
What is a Beryllium Oxide Tube/Pipe and what is its primary use?
It is a specialized tubular component made from high-purity beryllium oxide ceramic, primarily used in high-temperature and high-power applications requiring exceptional thermal conductivity and electrical insulation, such as in semiconductor equipment and microwave device cooling.
What are the advantages of Beryllium Oxide tubes compared to other ceramic tubes (e.g., alumina tubes)?
Its key advantage is the combination of exceptionally high, near-metallic thermal conductivity and excellent electrical insulation, whereas traditional ceramics like alumina have much lower thermal conductivity, making them less suitable for efficient heat dissipation.
Are Beryllium Oxide tubes toxic? What precautions are necessary during use?
The solid finished product is stable, but inhalation of dust generated during machining (e.g., cutting, grinding) is toxic. Strict safety protocols, including protective equipment and professional ventilation, are mandatory.
How good is the thermal conductivity of Beryllium Oxide tubes?
Its room-temperature thermal conductivity is approximately 330 W/(m·K), over 10 times that of alumina and comparable to some aluminum metals, making it one of the best thermally conductive insulating materials known.
How are Beryllium Oxide tubes connected or sealed?
Specialized ceramic-to-metal brazing techniques or compatible high-temperature adhesives/gaskets are typically used. Professional design is required to avoid cracking due to its differing coefficient of thermal expansion from most metals.
