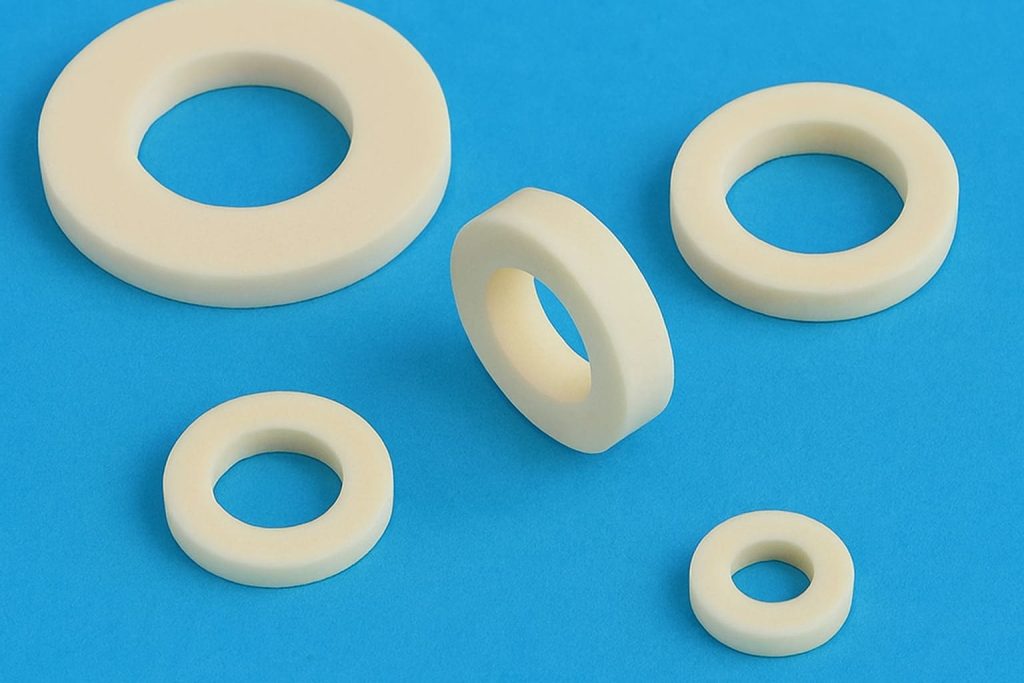

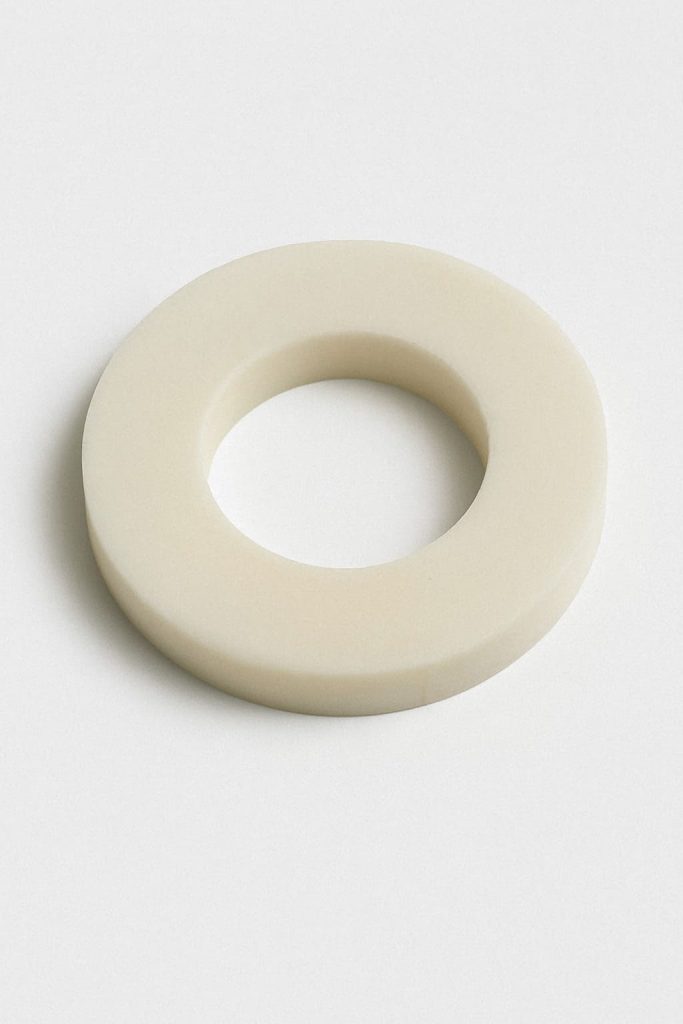

Beryllium Oxide Ring
Beryllium oxide ring, renowned for its exceptional thermal conductivity and electrical insulation, is a critical component in high-power electronic and microwave applications. Composed of high-purity beryllium oxide ceramic, it efficiently dissipates heat while maintaining reliable electrical isolation, ensuring stability and longevity in demanding environments such as aerospace, telecommunications, and semiconductor manufacturing. Its unique combination of low dielectric loss, high strength, and resistance to thermal shock makes it an indispensable solution for thermal management in precision devices, though handling requires strict safety measures due to the material’s toxicity when in powdered form.
- Custom and standard options available.
- Fast lead times guaranteed.
- High performance at a competitive price.
Beryllium Oxide Ring Data Sheet
| Color: | White |
| Chemical Formula: | BeO |
| Dimension: | customized |
| Machining Accuracy: | 0.01 mm |
| Surface Roughness: | 0.1 μm |
Beryllium Oxide Ring Description
The beryllium oxide ring is a high-performance ceramic component engineered for extreme thermal management challenges, leveraging beryllium oxide’s outstanding thermal conductivity—which rivals that of metals—while maintaining excellent electrical insulation and high dielectric strength. This unique synergy allows it to act as an indispensable heat-spreading and isolating interface in high-power density applications such as RF/microwave transmission systems, laser diodes, power semiconductors, and aerospace electronics. Its rigid ceramic structure offers remarkable dimensional stability, resistance to thermal shock, and low dielectric loss at elevated temperatures, ensuring signal integrity and operational reliability. Due to the toxicity risks associated with airborne beryllium-containing dust, the ring is safely encapsulated or metallized in final assemblies, and its manufacture and handling require stringent industrial controls.
Beryllium Oxide Ring Chemical Compositions
| Element | Content (ppm) |
|---|---|
| Boron (B) | 2 |
| Aluminum (Al) | 46 |
| Chromium (Cr) | 8 |
| Iron (Fe) | 32 |
| Magnesium (Mg) | 1000 |
| Manganese (Mn) | 2 |
| Nickel (Ni) | 9 |
| Titanium (Ti) | 5 |
| Sodium (Na) | 173 |
| Calcium (Ca) | 31 |
| Silicon (Si) | 2100 |
Beryllium Oxide Ring Features
- Exceptional Thermal Conductivity: Possesses one of the highest thermal conductivities among electrical insulating materials, comparable to some metals.
- Superior Electrical Insulation: Maintains excellent dielectric strength and high electrical resistivity even at elevated temperatures.
- High Mechanical Strength & Hardness: Exhibits significant structural rigidity and wear resistance as a ceramic component.
- Low Dielectric Loss: Ideal for high-frequency and microwave applications due to minimal signal attenuation.
- Thermal Shock Resistance: Withstands rapid temperature changes without cracking, thanks to a favorable combination of thermal and mechanical properties.
- Chemical Stability: Inert in most environments, resistant to oxidation and corrosion.
- Requires Special Handling: Machined parts are safe, but processing creates toxic beryllium-containing dust, mandating strict industrial safety controls.
Beryllium Oxide Ring Applications
- RF/Microwave Devices: Heat dissipation and insulation in klystrons, TWTs, and radar systems.
- High-Power Lasers & LEDs: Thermal management substrates for laser diodes and optoelectronics.
- Power Electronics: Electrically insulating, thermally conductive substrates in IGBTs and power modules.
- Aerospace & Defense: Critical components in satellites, avionics, and communication systems.
- Nuclear Technology: Moderators and reflectors in nuclear reactors and instrumentation.
- Thermal Interface Washers: Efficient heat-spreading spacers in high-density electronic assemblies.

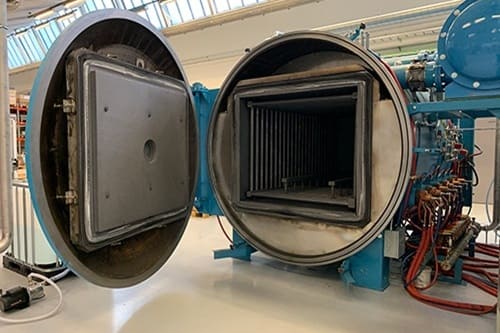

- High-Temperature Equipment: Components in semiconductor processing and vacuum systems.
Beryllium Oxide Ceramic Packaging
Beryllium oxide ceramic products are typically packaged in vacuum-sealed bags to prevent moisture or contamination and wrapped with foam to cushion vibrations and impacts during transport, ensuring the quality of products in their original condition.
Download
- SAFETY DATA SHEET (SDS) -Beryllium Oxide Ring
FAQ
What is a Beryllium Oxide Ring? What material is it made of?
A Beryllium Oxide Ring is a high-performance ceramic ring made from high-purity (typically ≥99.5%) beryllium oxide (BeO) ceramic, known for its exceptional thermal conductivity and electrical insulation.
What are the key properties of Beryllium Oxide Rings?
Key properties include: extremely high thermal conductivity (similar to metals), high electrical insulation, low dielectric loss, high-temperature resistance (up to 1800°C), and thermal shock resistance.
Is Beryllium Oxide toxic? What safety precautions are required?
Solid BeO rings are non-toxic, but their dust is hazardous. Machining requires professional protection (e.g., dust control). Finished rings are safe to handle.
Can BeO rings replace other ceramic rings (e.g., alumina)?
They can replace others in extreme heat dissipation scenarios, but are costlier and require safety measures. Alumina is more common for general insulation.
What is the operating temperature range of BeO rings?
Long-term use up to 1500°C, short-term resistance to 1800°C, suitable for extreme high-temperature applications.
