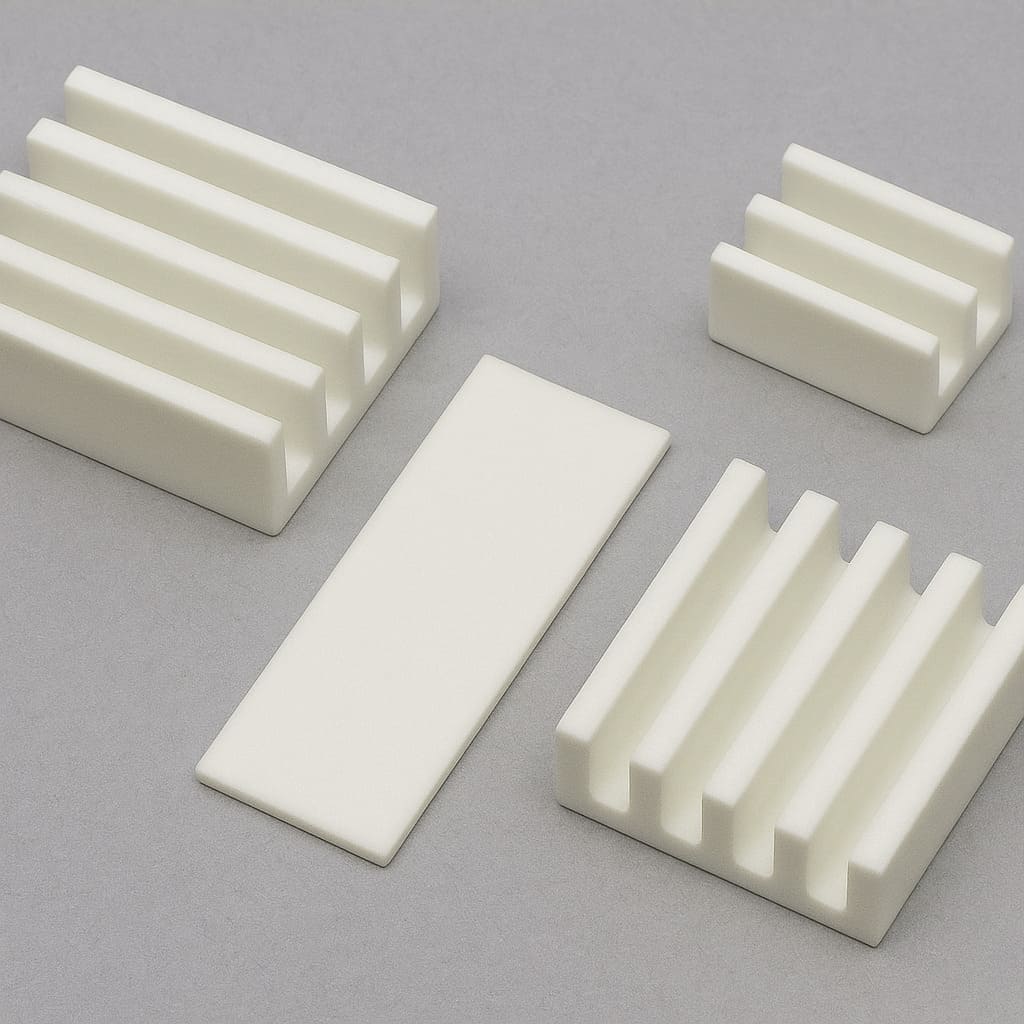

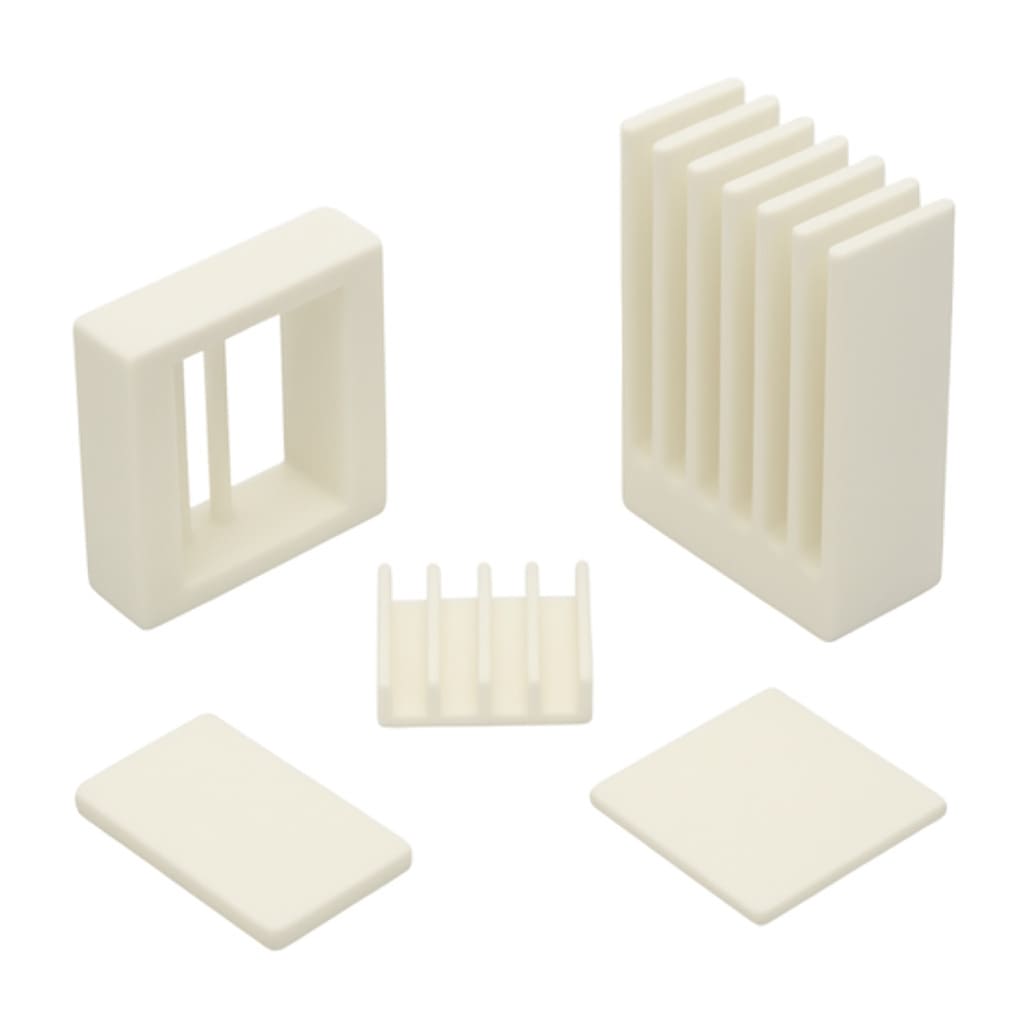

Beryllium Oxide Heat Sinks
Beryllium Oxide heat sinks are advanced thermal management components designed to solve the most challenging cooling problems in high-power electronics. By leveraging the exceptional properties of Beryllium Oxide ceramic, these heat sinks provide unmatched heat dissipation capability while maintaining critical electrical isolation.
- Custom and standard options available.
- Fast lead times guaranteed.
- High performance at a competitive price.
Beryllium Oxide Heat Sinks Data Sheet
| Color: | White |
| Chemical Formula: | BeO |
| Dimension: | customized |
| Machining Accuracy: | 0.01 mm |
| Surface Roughness: | 0.1 μm |
Beryllium Oxide Heat Sinks Description
Beryllium Oxide heat sinks represent a premium thermal management solution that uniquely combines metal-level thermal conductivity with excellent electrical insulation properties, making them ideal for cooling high-power density electronic components where both efficient heat dissipation and electrical isolation are critical. These advanced ceramic heat sinks efficiently draw heat away from sensitive devices such as laser diodes and RF power transistors while simultaneously providing reliable electrical insulation, eliminating the need for additional insulating layers that typically compromise thermal performance. With their ability to maintain structural stability and dielectric strength at elevated temperatures, coupled with customizable geometries and metallization options, BeO heat sinks enable more compact, reliable, and higher-performing designs in demanding applications across aerospace, telecommunications, and high-power electronics.
Beryllium Oxide Heat Sinks Chemical Compositions
| Element | Content (ppm) |
|---|---|
| Boron (B) | 2 |
| Aluminum (Al) | 46 |
| Chromium (Cr) | 8 |
| Iron (Fe) | 32 |
| Magnesium (Mg) | 1000 |
| Manganese (Mn) | 2 |
| Nickel (Ni) | 9 |
| Titanium (Ti) | 5 |
| Sodium (Na) | 173 |
| Calcium (Ca) | 31 |
| Silicon (Si) | 2100 |
Beryllium Oxide Heat Sinks Features
- Exceptional Thermal Conductivity
- Provides thermal conductivity ranging from 240-330 W/mK, surpassing most common ceramics and matching some metals.
- Integrated Electrical Insulation
- Combines efficient heat dissipation with reliable dielectric strength, eliminating the need for additional insulating layers.
- High-Temperature Stability
- Maintains structural and performance integrity under extreme temperatures (up to 800°C in air).
- Customizable Designs
- Supports complex geometries, micro-channel structures, and tailored metallization for optimal integration.
- Compact and Lightweight
- Enables high-power-density designs by reducing volume and weight compared to multi-component solutions.
- Corrosion and Wear Resistance
- Resists chemical erosion and mechanical wear for long-term reliability in harsh environments.
Beryllium Oxide Heat Sinks Applications
- High-Power Laser Systems
- Used for cooling laser diode arrays and solid-state lasers, ensuring stable output power and extended lifespan.
- RF/Microwave Power Amplifiers
- Dissipate heat from GaN/SiC power transistors in communication base stations and radar systems.
- Aerospace & Defense Electronics
- Critical for avionics, missile guidance systems, and electronic warfare equipment requiring lightweight thermal management.
- Power Semiconductor Modules
- Serve as insulated baseplates for IGBTs and SiC power modules in industrial drives and renewable energy systems.
- Medical Laser Equipment
- Provide precise cooling for surgical and therapeutic laser devices where reliability is paramount.
- High-Voltage Electronics
- Used in X-ray generators and particle accelerators combining high voltage isolation with efficient cooling.
Beryllium Oxide Ceramic Packaging
Beryllium oxide ceramic products are typically packaged in vacuum-sealed bags to prevent moisture or contamination and wrapped with foam to cushion vibrations and impacts during transport, ensuring the quality of products in their original condition.
Download
- SAFETY DATA SHEET (SDS) -Beryllium Oxide Heat Sinks
FAQ
What makes Beryllium Oxide heat sinks unique compared to aluminum heat sinks?
BeO heat sinks provide comparable thermal conductivity to aluminum while offering complete electrical insulation, eliminating the need for separate insulating layers.
What is the typical thermal conductivity of Beryllium Oxide heat sinks?
They typically offer 240-330 W/mK, significantly higher than most other ceramic materials and comparable to metals.
What maximum operating temperature can BeO heat sinks withstand?
They can operate continuously at temperatures up to 800°C in air, maintaining both structural and dielectric integrity.
Why choose BeO heat sinks for high-power laser applications?
Their combination of high thermal conductivity and electrical insulation makes them ideal for cooling laser diodes while maintaining electrical isolation.
What mounting options are available for BeO heat sinks?
We provide various metallization including thick-film, thin-film, and plating for soldering, brazing, or epoxy attachment.
