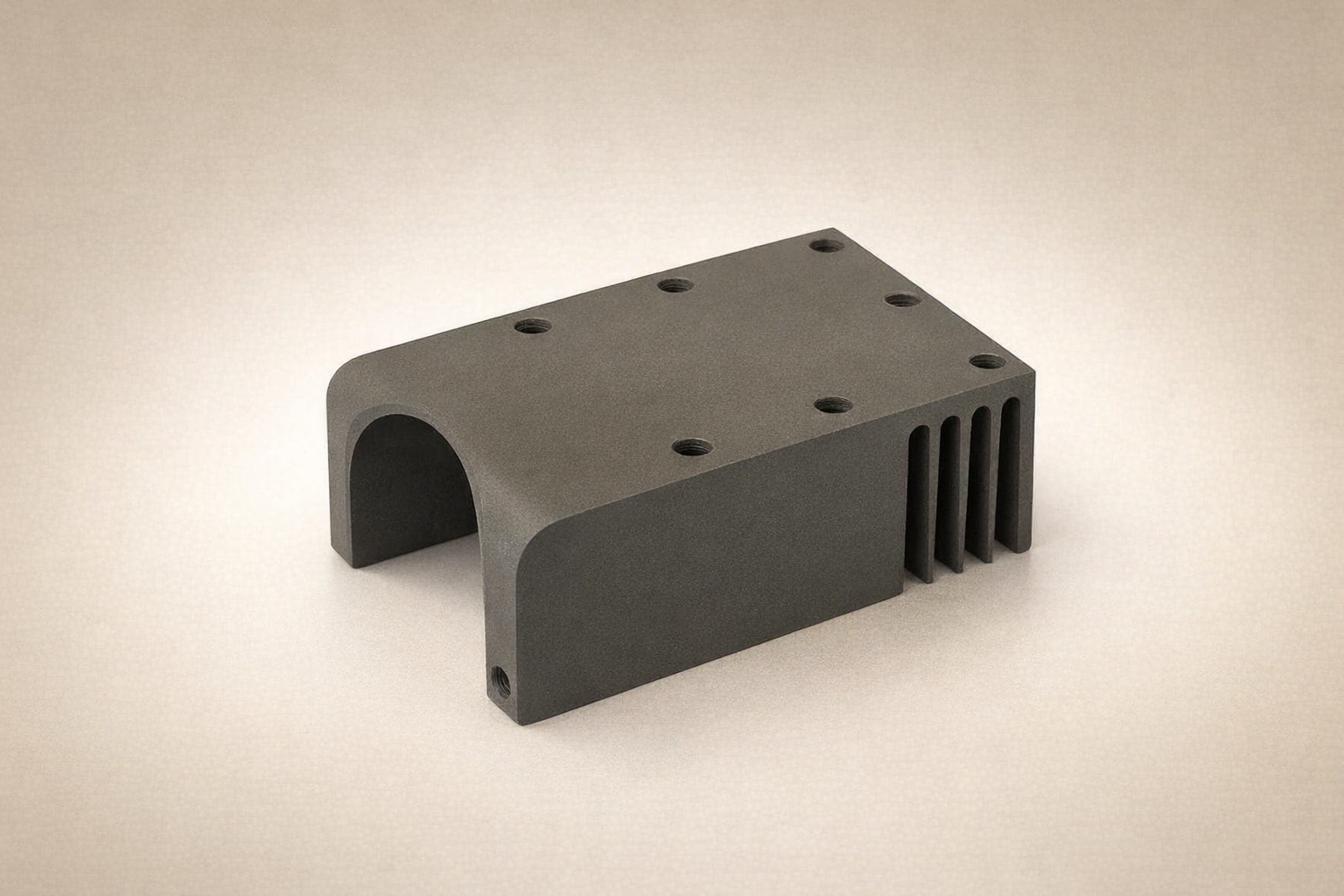

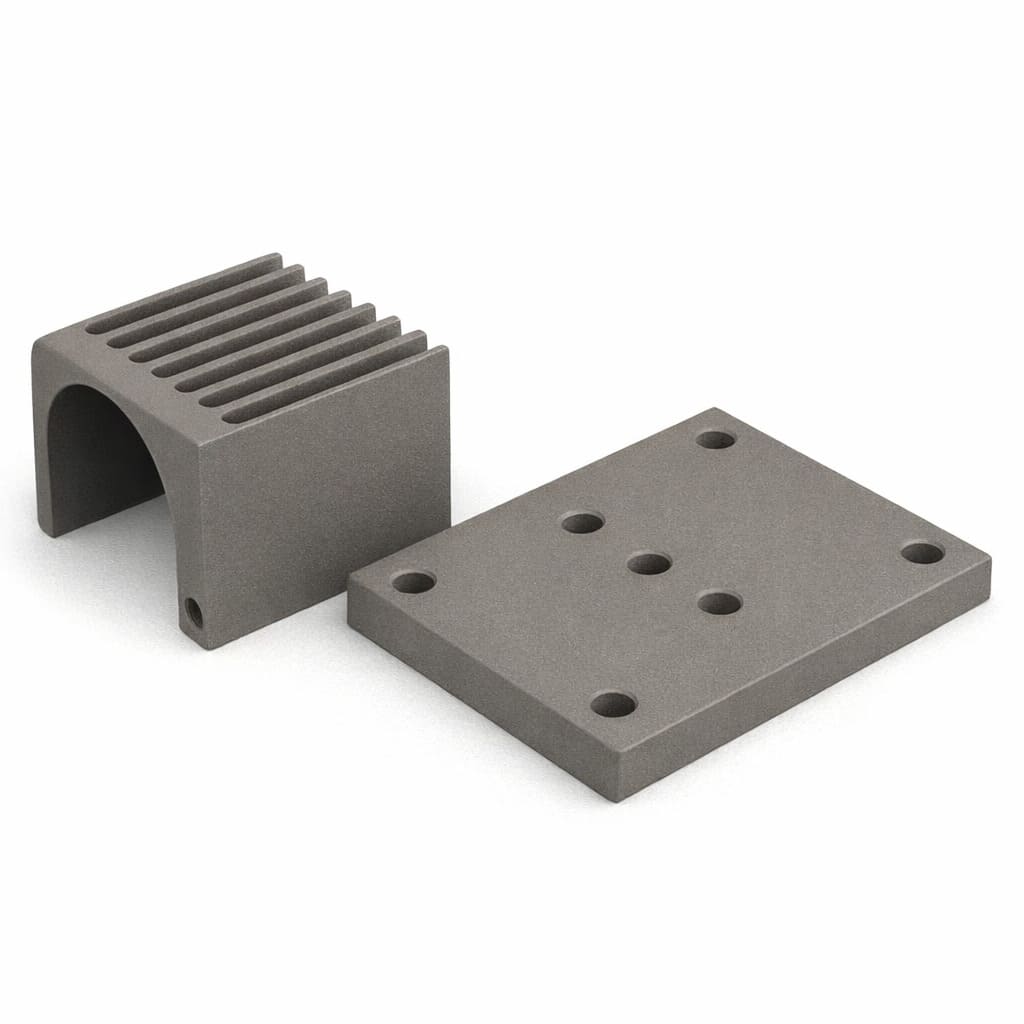

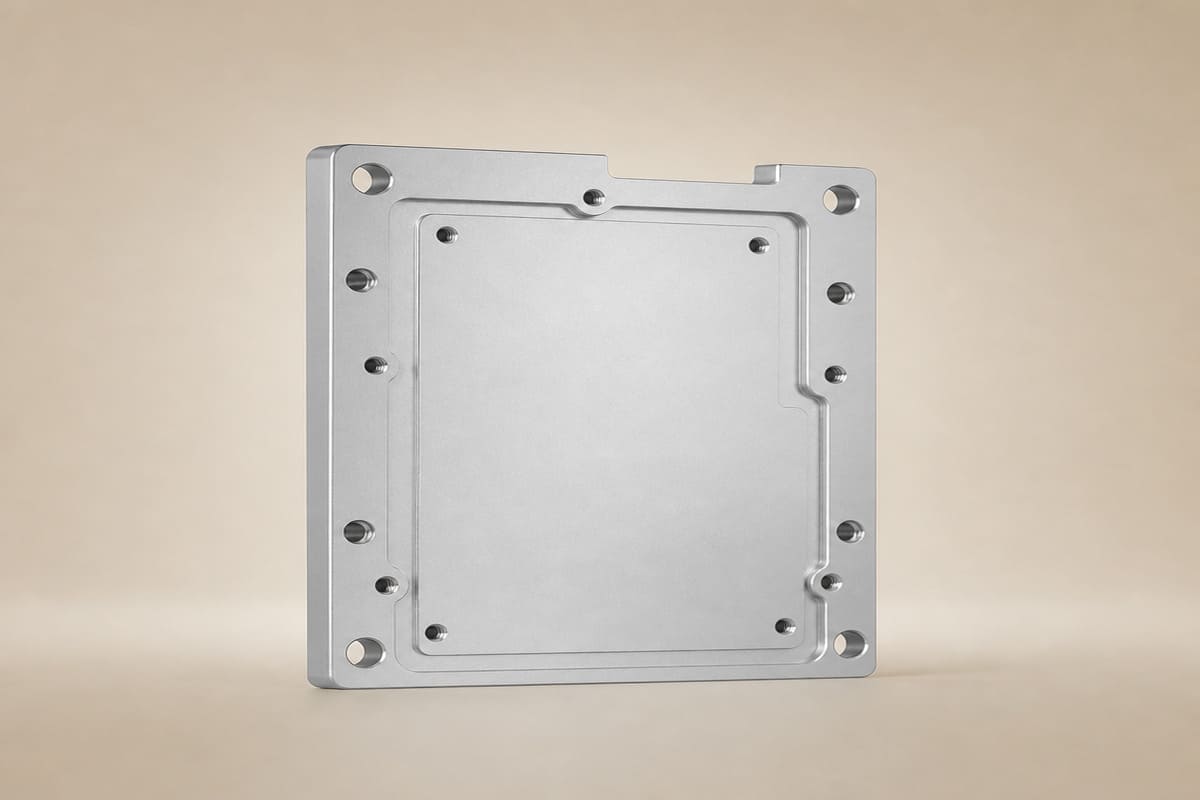

Aluminum Silicon Carbide IGBT Base Plate

The AlSiC IGBT Base Plate is a high-performance, metal-matrix composite substrate designed specifically for next-generation power modules. Unlike conventional copper or aluminum base plates, AlSiC solves the critical mismatch between semiconductor materials and system packaging.NexusX Advanced Materials, as a premier manufacturer and supplier of high-quality Aluminum Silicon Carbide IGBT Base Plate products, focuses on producing high-precision aluminum nitride silicon structural compenents through advanced technologies for diverse application fields.

Or email us at [email protected]

Aluminum Silicon Carbide IGBT Base Plate Data Sheet

Chemical Formula:	Al-SiC
Shape:	Plate
Dimension:	Standard or customized

Aluminum Silicon Carbide IGBT Base Plate Description

The Aluminum Silicon Carbide (AlSiC) IGBT Base Plate is a groundbreaking metal matrix composite material specifically engineered to serve as the foundational thermal and structural core in high-power Insulated Gate Bipolar Transistor (IGBT) modules. It represents a significant leap forward from traditional copper or aluminum baseplates by solving the critical issue of thermal expansion mismatch, thereby unlocking new levels of power density and long-term reliability.In summary, the AlSiC IGBT base plate is not just a component; it is the cornerstone for building compact, reliable, and high-performance power modules.

Aluminum Silicon Carbide Material Chemical Composition

Technology	Material Reference Code	Volume Fraction		Performance Advantages	Application Directions
		SiC (%)	Al (%)
RSPM + HIP (Rapid Solidification + HIP)	HMA15	15	85	High specific strength & stiffness Low density Excellent wear resistance Good heat resistance	Lightweight and wear-resistant components Alternative to aluminum alloys, cast steel, cast iron, and titanium alloys Brake components, pistons, connecting rods, fighter belly fins, helicopter rotor forgings
	HMA30	30	70
	HMA40	40	60	High specific strength & stiffness High micro-yield strength Low thermal expansion High thermal conductivity	Aerospace and defense applications Optical mirrors, inertial navigation system components Alternative to beryllium, glass-ceramics, quartz glass
	HMA50	50	50
Pressure Infiltration (PI)	HMA55	55	45	High specific modulus Low density Low thermal expansion High thermal conductivity	Thermal management materials for military and civilian use Military IGBT substrates, PCB substrates, heat dissipation baseplates Electronic component bases and housings, power amplifier module housings and bases Alternative to W/Cu, Mo/Cu, Kovar alloys
	HMA65	65	35
	HMA70	70	30

Aluminum Silicon Carbide IGBT Base Plate Features

1.Optimal Thermal Expansion Matching
Tailorable CTE (6.5-8.5 ppm/K) perfectly matches ceramic substrates (Al₂O₃, AlN) and silicon chips
Eliminates thermal stress and solder joint failure during power cycling
Ensures long-term structural integrity under extreme temperature variations
2.Superior Thermal Management
High thermal conductivity (180-220 W/mK) enables efficient heat dissipation
Maintains lower junction temperatures for improved device reliability
Enhanced power handling capability and thermal cycling performance
3.Lightweight Structural Solution
Low density (∼3.0 g/cm³) reduces module weight by up to 65% compared to copper
High specific stiffness provides excellent mechanical stability
Ideal for weight-sensitive applications in automotive and aerospace
4.Enhanced Reliability
Exceptional thermal fatigue resistance
Maintains flatness and dimensional stability under thermal stress
Compatible with standard packaging processes and materials

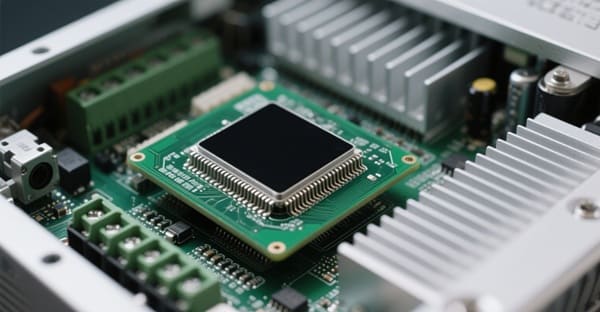

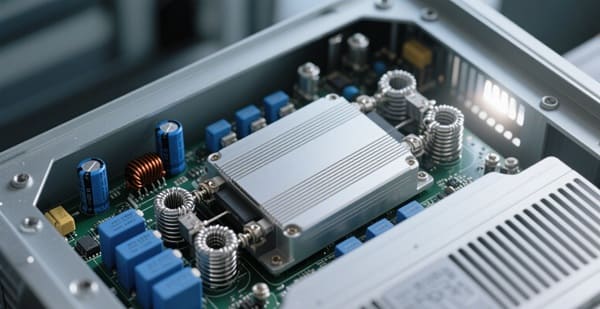

Aluminum Silicon Carbide IGBT Base Plate Applications

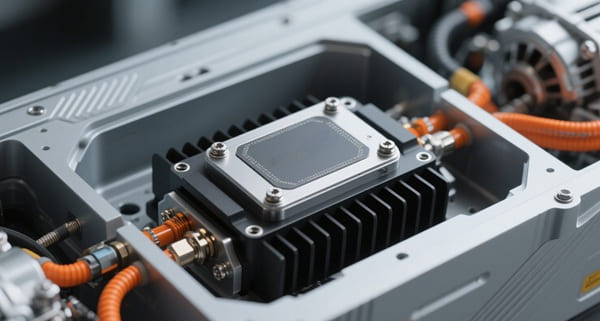

1. Electric Vehicle Power Systems
Traction inverters and motor drives
On-board chargers (OBC)
DC-DC converters
Provides reliable thermal management for high-power EV applications

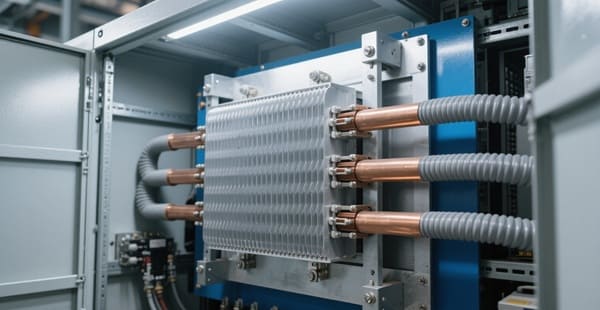

2. Industrial Power Electronics
Motor drives and servo controllers
Uninterruptible Power Supplies (UPS)
Welding equipment and industrial SMPS
Withstands harsh industrial environments
3. Renewable Energy Systems
Solar power inverters
Wind turbine converters
Energy storage system converters
Ensures long-term reliability in outdoor applications
4. Aerospace and Transportation
Aircraft power distribution systems
Railway traction systems
Urban transit vehicle drives
Meets stringent weight and reliability requirements
5. High-Pensity Power Modules
Compact power modules for telecom
High-frequency power supplies
Medical equipment power systems
Enables miniaturization of power devices

Aluminum Silicon Carbide Packaging

Aluminum silicon carbide ceramic products are typically packaged in vacuum-sealed bags to prevent moisture or contamination and wrapped with foam to cushion vibrations and impacts during transport, ensuring the quality of products in their original condition.

Download

FAQ

What is the biggest advantage of AlSiC base plate over copper?

Its CTE match to ceramic substrates prevents thermal fatigue failure, while being 65% lighter.

Can AlSiC base plates handle high power applications?

Yes, with thermal conductivity of 180-220 W/mK, they excel in EV and industrial drives.

What is the typical operating temperature range?

-55°C to +250°C, capable of withstanding harsh operating conditions.

What surface finishes are available?

Ni/Au, Ni/Ag, and anodizing options for different bonding requirements.

How does it perform in thermal cycling tests?

Excellent. It typically withstands 3-5x more cycles than copper baseplates.
