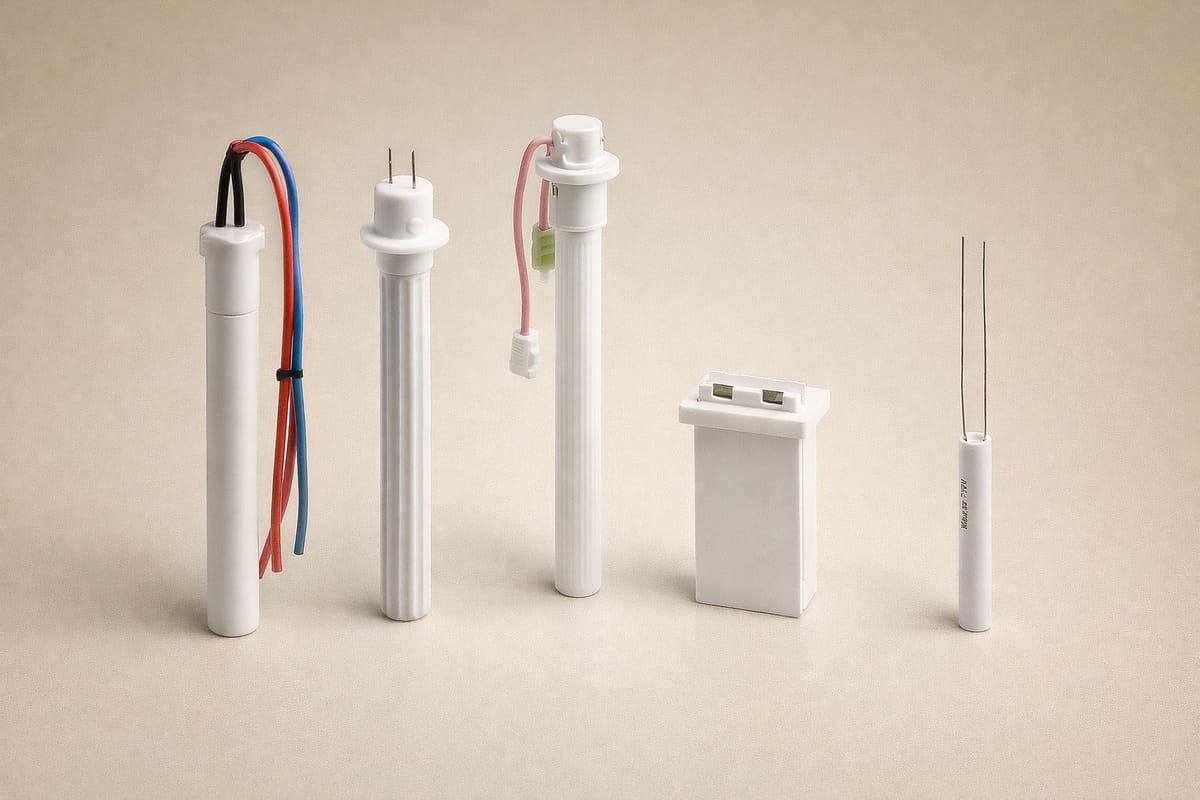

Alumina Heater
- Custom and standard options available.
- Fast lead times guaranteed.
- High performance at a competitive price.
The Alumina Heater is a high-purity (99.8%) ceramic heating element with fast thermal response, excellent temperature uniformity, and strong electrical insulation. Resistant to high temperatures and corrosion, it’s ideal for semiconductor processing, photovoltaics, analytical instruments, and 3D printer nozzles. Custom OEM designs available.NexusX Advanced Materials, as a premier manufacturer and supplier of high-quality. Alumina (Al2O3) products, focuses on producing high-precision aluminum nitride silicon structural compenents through advanced technologies for diverse application fields.
Or email us at [email protected]
Alumina Heater Data Sheet
Purity: | 95%, 96%, 99%, 99.5%, 99.7%, 99.95% |
Structure : | Plate, rod, tube |
Color: | White or Ivory |
Density | 3.7-3.98 g/cm3 |
Alumina Heater Descriptions
The Alumina Heater is a high-purity ceramic heating element designed for precision and reliability in demanding thermal applications. Manufactured from 99.8% aluminum oxide, it delivers rapid heat-up, exceptional temperature uniformity, and superior electrical insulation. With excellent resistance to high temperatures, oxidation, and corrosion, this heater ensures long-term stability in harsh environments. Commonly used in semiconductor manufacturing, photovoltaic systems, analytical instruments, medical devices, and 3D printer nozzles, the Alumina Heater supports custom OEM configurations to fit specific power, size, and shape requirements. Its combination of thermal performance and mechanical strength makes it an ideal choice for advanced industrial heating solutions.
Alumina Heater Property Parameters
Object | Value |
Maximum operating temperature | MAX 1000℃ |
Normal operating temperature | MAX 800℃ |
Thermal conductivity (20℃) | 18 W/(mK) |
Specific heat (20℃) | 0.78×10 3 J/(kg-K) |
Linear expansion coefficient (40-800℃) | 7.8× 10⁻⁶ /℃ |
Alumina Heater Advantages
- High Purity: Made from 99.8% high-purity aluminum oxide, ensuring consistent performance and minimal contamination.
- Fast Thermal Response: Rapid heat-up and cool-down times improve process efficiency.
- Excellent Temperature Uniformity: Provides even heat distribution across the heating surface for precise thermal control.
- Superior Electrical Insulation: High dielectric strength ensures safe operation in sensitive electronic and semiconductor applications.
- High Temperature Resistance: Capable of operating reliably at elevated temperatures (typically up to 400°C–600°C or higher, depending on design).
- Corrosion & Oxidation Resistance: Withstands harsh chemical environments and long-term exposure to air at high temperatures.
- Long Service Life: Excellent thermal stability and mechanical strength reduce cracking or degradation over time.
- Customizable Design: Available in various shapes, sizes, wattages, and voltages to meet specific OEM requirements.
- Clean & Particle-Free: Ideal for vacuum and cleanroom environments such as semiconductor and analytical instrumentation.
- Energy Efficient: Low thermal mass and direct heating reduce power consumption compared to conventional heaters.
Alumina Heater Applications
- Semiconductor Manufacturing: Wafer processing, CVD, PVD, etching, and ashing equipment where high purity and contamination-free heating are critical.
- Photovoltaic (Solar) Industry: Heating components in diffusion furnaces, coating systems, and cell production lines.
- Analytical Instruments: Gas chromatographs, mass spectrometers, thermal analyzers, and spectroscopy equipment requiring precise, stable temperature control.
- Medical Devices: Diagnostic equipment, fluid heating systems, and sterilization devices where cleanliness and reliability are essential.
- 3D Printing: Heated nozzles and print beds for high-temperature thermoplastics and industrial additive manufacturing.
- Aerospace & Defense: De-icing systems, sensor heating, and thermal management in sensitive electronic assemblies.
- Laboratory & Research Equipment: Heating elements in lab furnaces, hot plates, environmental chambers, and material testing machines.
- Industrial Automation: Heat sealing, plastic welding, and packaging machinery requiring fast, uniform heating.
Alumina Ceramic Machining
Alumina ceramics are produced through methods such as injection molding, die pressing, isostatic pressing, slip casting, and extrusion. After sintering and densification, machining requires diamond grinding techniques. Advanced Ceramic Hub utilizes cutting-edge green and biscuit machining technology to produce more complex components with traditional methods. Our advanced machining center includes drilling, grinding, milling, polishing, sawing, tapping, threading, and turning, enabling the manufacture of alumina ceramic components with tight tolerances and high complexity. During the machining process, the following precautions should be observed:
- Shrinkage Control: Alumina ceramics shrink by about 20% during sintering, requiring dimensional adjustments in the green body stage.
- Tolerance Control: Precise tolerances are unachievable in the green or pre-sintered state; fine machining should follow sintering.
- Diamond Grinding: Post-sintering, high-hardness alumina requires diamond grinding, as conventional methods fall short.
- Tool Selection: Diamond-coated tools or grinding wheels are essential to handle ceramic hardness and prevent tool damage.
- Temperature Control: Strict temperature management during sintering prevents cracking or deformation.
- Stress Management: Excessive stress during machining must be avoided to prevent brittle failure.
- Cutting Speed and Feed Rate: Controlled speeds and feeds ensure quality and extend tool life.
- Surface Treatment: Post-machining polishing removes defects, enhancing performance and appearance.
Alumina Ceramic Packaging
The Alumina Ceramic products are carefully placed in wooden cases or cartons with additional support from soft materials to prevent any shifting during transportation. This packaging method guarantees the integrity of the products throughout the delivery process.
Download
- SAFETY DATA SHEET (SDS) -Alumina Heater
FAQ
What is an Alumina Heater?
An Alumina Heater is a ceramic heating element made from high-purity aluminum oxide (Al₂O₃), offering fast heating, uniform temperature distribution, excellent electrical insulation, and high resistance to heat and corrosion.
What are the key advantages of an Alumina Heater?
Key advantages include 99.8% purity, fast thermal response, excellent temperature uniformity, high dielectric strength, oxidation resistance, long service life, and customizability in shape, power, and voltage.
What are the common applications of an Alumina Heater?
Common applications include semiconductor manufacturing, photovoltaic equipment, analytical instruments (e.g., gas chromatographs), medical devices, 3D printer nozzles, laboratory furnaces, and industrial automation systems.
How long is the service life of an Alumina Heater?
Under normal operating conditions, an Alumina Heater can last several thousand hours or more, depending on factors such as operating temperature, power load, and environmental conditions.
What is the difference between an Alumina Heater and a metal heater?
An Alumina Heater offers better electrical insulation, corrosion resistance, and temperature uniformity, and does not oxidize or short-circuit, making it ideal for clean or harsh environments; metal heaters are cheaper but have poor insulation.
